Product description
Features
- DALI repeater with integrated DALI power supply.
- Device to enhance the maximum DALI cable length from 300m up to 600m.
- Enhancement and Transmission of the DALI-signals (bidirectional).
- Galvanic separation between DALI circuits.
- Either radially arranged network layout or cascaded system mounting operated with single master.
- Restricted cascading (Series wiring) of multiple repeaters in multi-master operating mode.
- The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subordinate circuits at will.
- For each subordinate DALI circuits no extra DALI power supply required.
Technical data
| Power supply | 100V-240V AC |
| Typ. current consumption DALI IN | < 2mA |
| Typ. current consumption DALI OUT | Integrated DALI PS: up to 150mA |
| Input/output | DALI/DALI |
| Wire cross section | 0.5 …1.5 mm2 |
| Mounting | Remote ceiling |
| Protection class | IP20 |
| Ambient temperature | -20°C to +50°C |
| Dimension | 170mm x 59mm x 29mm |

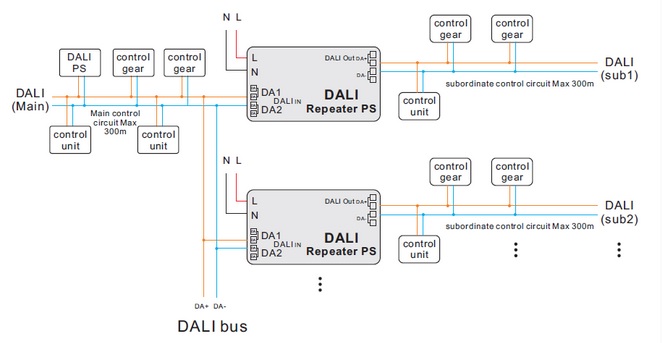

Wiring diagram

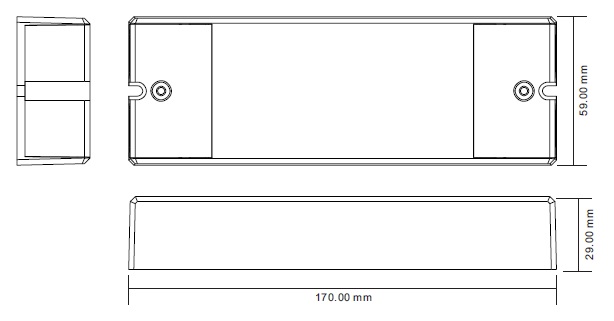

Dimensions
Useful information
Specifications
Other products of the same brand
Other products in this category
Experimental product description generated by artificial intelligence
Sunricher DALI Repeater with Built-in Power Supply
This Sunricher DALI repeater is a crucial component for any DALI lighting system. It acts as a signal booster, extending the reach and reliability of your DALI network.
Key Features and Benefits
- DALI Signal Enhancement: Extends the range of your DALI network, allowing you to connect more devices over longer distances.
- Integrated Power Supply: Eliminates the need for a separate power supply, simplifying installation and reducing costs.
- Bidirectional Communication: Enables seamless two-way communication between the DALI control unit and connected devices.
- Galvanic Isolation: Provides electrical isolation between DALI circuits, enhancing system stability and safety.
- Flexible Mounting: Designed for easy installation in various settings.
- Supports Multiple Topologies: Compatible with both radial and cascaded network configurations.
Applications
This DALI repeater is ideal for:
- Expanding the reach of existing DALI systems.
- Connecting DALI devices in large or complex installations.
- Improving the reliability and stability of DALI networks.
Why Choose This Product?
The Sunricher DALI repeater offers a reliable, cost-effective solution for extending your DALI network. Its integrated power supply and robust design make it a superior choice for both residential and commercial applications. Choose this product for simplified installation, enhanced network performance, and improved system reliability.
| Specification | Value |
|---|---|
| Power Supply | 100-240V AC |
| Typical Current Consumption (Input) | <2mA |
| Typical Current Consumption (Output) | Up to 150mA |
| Mounting | Remote Ceiling |
| Dimensions | 170x59x29mm |
