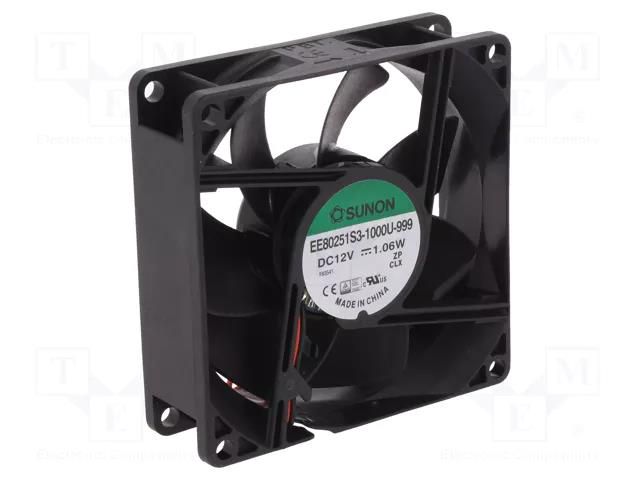

Fan: DC; axial; 12VDC; 80x80x25mm; 55.77m3/h; 28dBA; slide; 24AWG SUNON
Product Code: EE80251S3-999-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-04-15 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Fan: DC; axial; 12VDC; 80x80x25mm; 55.77m3/h; 28dBA; slide; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 80x80x25mm; 55.77m3/h; 28dBA; slide; 24AWG
Useful information
Supplier parameters
Product code
EE80251S3-999-A
Brand
SUNON
Supplier's product code
EE80251S3-999-A
Product ID
U-176645
Cable length
0.315m
Current rating
88mA
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
55.77m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
slide
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
28dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.06W
Rotational rate/speed
2600 (±10%)rpm
Static pressure
2.79mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
