Extralink SFP 1.25G | SFP CWDM Module | 1,25Gbps, 1470nm, single mode, 40km, LC, DOM, EXTRALINK
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€1.99
Supplier product description

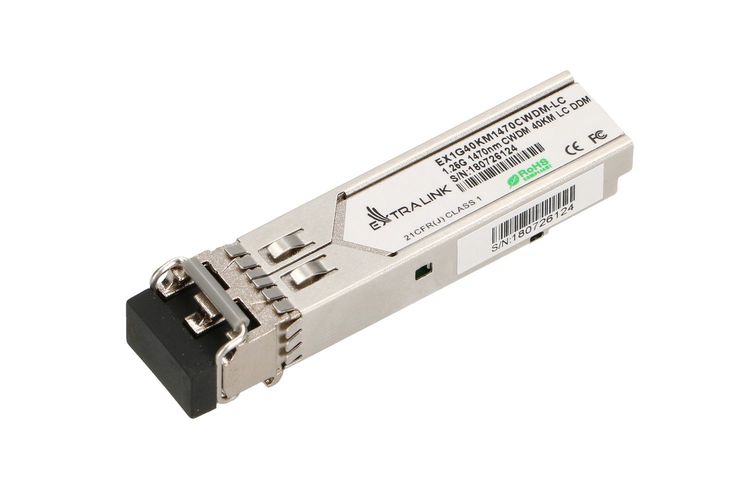

Economical fiber optic module SFP CWDM 1.25G 1470NM SM 40KM LC DDM
Fibre optic SFP Extralink module is designed for serial transmission of optical data CWDM 1G Ethernet up to 40 KM from SMF. Single-mode SFP CWDM optical modules comply with MSA standards SFF-8431 and SFF-8472. 8 wavelengths from 1470 nm to 1610 nm are available, in 20 nm intervals. The SFP insert is characterized by low power consumption and data transfer rate up to 1.25 Gbps.
Special features
Special features
- Operational data transfer rate up to 1.25 Gbp
- CWDM DFB laser transmitter
- Transmission up to 40 km on SMF
- Compliance with SFF-8472
- 3.3 V power supply
- Operating temperature range from 0°C to 70°C
- Duplex LC connector interface
- Class 1 laser safety certificate
- Low power consumption
| Output connector | LC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | Over 20km |
| Coarse Wavelength Division Multiplexing (CWDM) | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Easy to install | Yes |
| Fiber type | SM (Single-Mode) |
| Housing material | Metal |
| HP segment | Business |
| Interface type | SFP |
| Manual | No |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 40000 |
| Multi-mode fiber (MMF) supported | No |
| Number of products included | 1 |
| Product colour | Stainless steel |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Type of SFP duplex | Wavy (WDM) |
| User guide | No |
| Wavelength | 1470 nm |
| Wavelength | 1470 |
| Wavelength-division multiplexing (WDM) | No |
