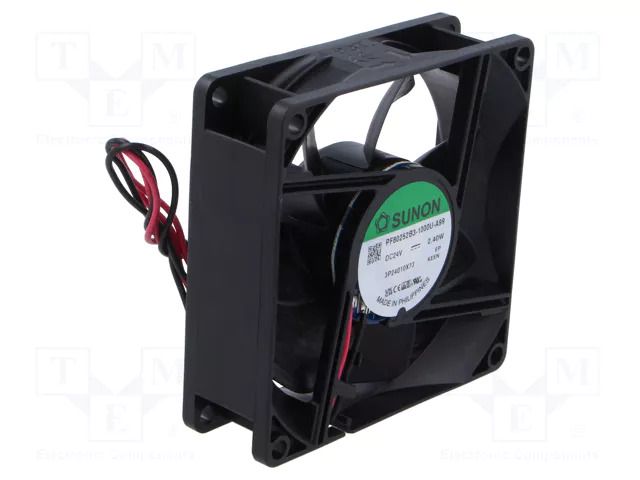

Fan: DC; axial; 24VDC; 80x80x25mm; 90.05m3/h; 42.5dBA; ball; 24AWG SUNON
Product Code: PF80252B3-A99-A
Delivery terms
2024-11-28 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 478 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 90.05m3/h; 42.5dBA; ball; 24AWG
Supplier parameters
Product code
PF80252B3-A99-A
Supplier's product code
PF80252B3-A99-A
Product ID
U-3032675
Additional functions
autorestart
Current rating
0.115A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
90.05m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
42.5dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
2.76W
Rotational rate/speed
4200 (±10%)rpm
Static pressure
7.62mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
Sorry, we no longer have this product.
