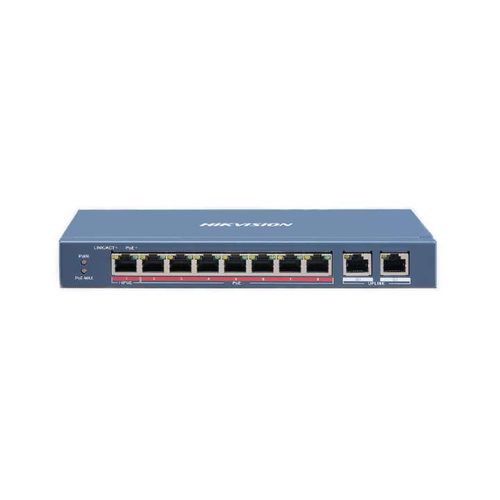

Hikvision 10 port 8 PoE port switch DS-3E0310HP-E
Product Code: SWITCHDS3E0310HPE
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-03-07 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Hikvision 10 port 8 PoE port switch DS-3E0310HP-E
Specifications
Supplier product description
- Up to 300 m Long Range PoE Transmission
- IEEE 802.3bt Standard Hi-PoE, Max. 90 W for One Port
- 4/8-Core Adaptive Power Supply
- 6KV Surge Protection
- PoE Power Supply
- PoE Standard
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 8: IEEE 802.3af, IEEE 802.3at
- PoE Power PinSupport 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE PortPorts 1 to 8
- Max. Port Power
Port 1: 90 W
Ports 2 to 8: 30 W
- PoE Power Pudget110 W
- Max. Power Consumption120 W
- Network Parameters
- Port Number1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- Working ModeStandard mode (default); Extend mode
- Ports for Long-Distance TransmissionPorts 1 to 8
- MAC Address Table16 K
- Switching Capacity5.6 Gbps
- Packet Forwarding Rate4.166 Mpps
- Internal Cache4 Mbits
- General
- ShellMetal material, fan-free design
- Gross Weight1.22 kg (2.69 lb)
- Net Weight0.55 kg (1.21 lb)
- Dimension (L × H × D)217.6 mm × 27.8 mm × 103.35 mm (8.6” × 1.1” × 4.1”)
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 2.5 A
- Power Consumption in Idle10 W
Supplier parameters
Product code
SWITCHDS3E0310HPE
Supplier's product code
SWITCHDS3E0310HPE
Product ID
U-2541163
Category
Swit
Brand
Hikvision
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
