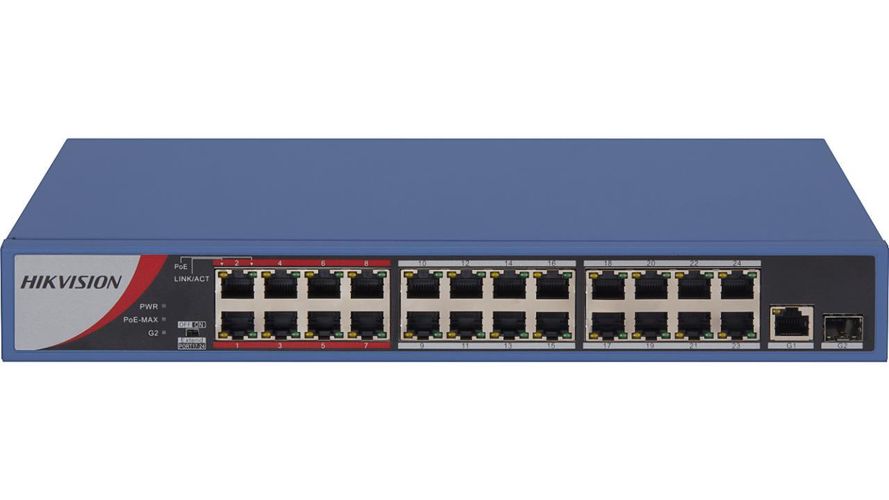

Hikvision 26 port 24 PoE port switch DS-3E0326P-E/M(C)
Product Code: SWITCHDS3E0326PEMC
Delivery terms
2024-12-06 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
- Network Parameters
- Ports24 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default); Extend mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding ModeStore-and-forward switching
- High Priority PortsPorts 1 to 8
- MAC Address Table4 K
- Switching Capacity8.8 Gbps
- Packet Forwarding Rate6.547 Mpps
- Internal Cache2.75 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPorts 1 to 24
- Max. Port Power30 W
- PoE Power Budget230 W
- Dialing Function
- Long RangePorts 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
- General
- Dimensions (W × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
- ShellMetal material
- Gross Weight3.33 kg (7.34 lb)
- Net Weight2.55 kg (5.60 lb)
- Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
- Power Consumption in Idle20 W
- Max. Power Consumption250 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Supplier parameters
Product code
SWITCHDS3E0326PEMC
Category
Swit
Brand
Hikvision
Supplier's product code
SWITCHDS3E0326PEMC
Product ID
U-2951312
