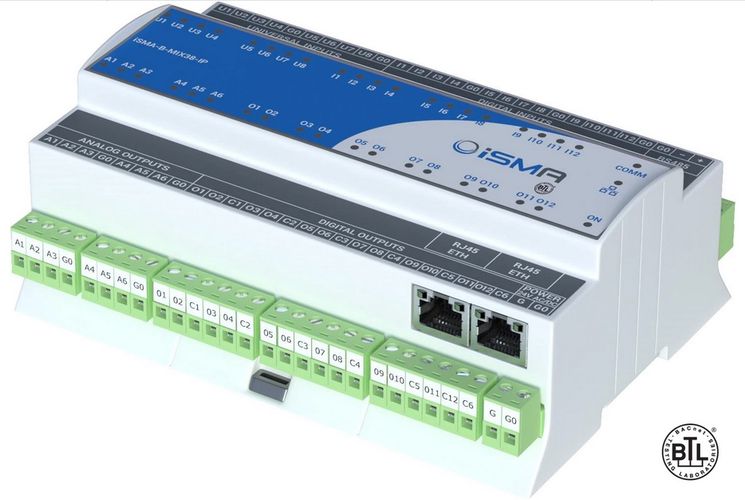

Expansion Module iSMA-B-MIX38-IP 12DI, 8UI, 6AO, 12DO, Modbus TCP/IP, BACnet IP, 12DI, 8UI, 6AO, 12DO
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 Not available | Vilnius Žirmūnai Store |
| Not available | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| Not available | Klaipėda Store |
| Not available | Šiauliai Store |
 5 pcs | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| Not available | Vilnius Žirmūnai Store |
| Not available | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| Not available | Klaipėda Store |
| Not available | Šiauliai Store |
| 5 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Product description
MIX series of I/O modules with RS485 and IP (2x Ethernet) have been designed for building distributed control systems using MAC36, AAC20 or another controller. Each MIX module is equipped with the most commonly used types od I/O in building automation. Depending on the version, the device will have 18 or 38 inputs and outputs, a mix of all types of I/O in one unit. All I/O modules have BTL and UL certificates.
The modules with RS485 and IP (2x Ethernet) are factory-equipped with the two most popular open communication protocols: Modbus (ASCII, RTU, TCP/IP) and BACnet (MSTP, IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.
Built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enables to connect additional modules/devices that communicate via Modbus RS485.
Thanks to supporting open communication standards MIX modules can be installed in both new and completed installations, as part of existing BMS. This versatile device will fit any BMS perfectly.
Useful information
Specifications
Experimental product description generated by artificial intelligence
iSMA CONTROLLI Expansion Module iSMA-B-MIX38-IP
The iSMA-B-MIX38-IP is a versatile expansion module designed for use in building automation and control systems. This powerful device offers a comprehensive suite of I/O capabilities, making it an ideal solution for a wide range of applications.
Key Features and Functions
- Extensive I/O: Provides 12 digital inputs, 8 universal inputs, 6 analog outputs, and 12 digital outputs, offering flexibility to integrate various sensors and actuators.
- Communication Protocols: Supports Modbus TCP/IP and BACnet IP, ensuring seamless integration with existing building management systems (BMS).
- Universal Inputs: The 8 universal inputs allow for voltage, current, resistance, and dry contact measurements, providing comprehensive monitoring capabilities.
- Analog Outputs: The 6 analog outputs (0-10V DC) enable precise control of various devices.
- Digital Outputs: The 12 digital outputs (relay outputs) are suitable for switching applications.
- Easy Installation: Designed for DIN rail mounting, simplifying installation and integration.
Applications
The iSMA-B-MIX38-IP expansion module finds applications in various building automation scenarios, including:
- HVAC control
- Lighting management
- Security systems
- Access control
- Process monitoring
Why Choose iSMA-B-MIX38-IP?
The iSMA-B-MIX38-IP stands out due to its:
- High I/O density: Combines various I/O types in a compact module.
- Multiple communication protocols: Offers broad compatibility with different BMS.
- Robust design: Ensures reliable operation in demanding environments.
- Ease of use: Simple installation and configuration.
This iSMA CONTROLLI expansion module is a reliable and efficient solution for expanding the I/O capabilities of your building automation system. Its versatility and comprehensive features make it a valuable asset for any building automation project.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
