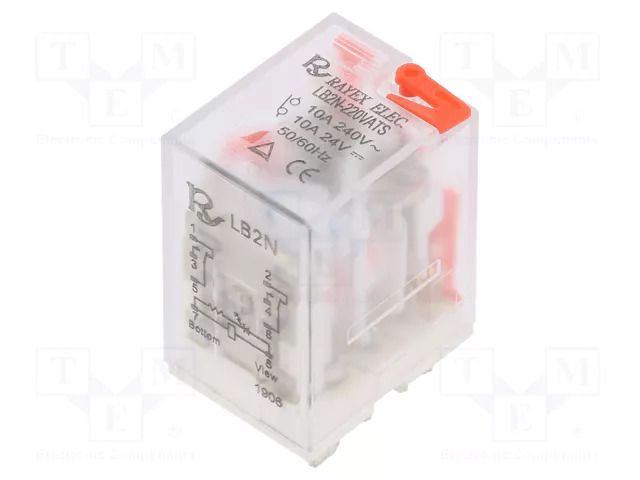

Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Product Code: LB2N-220ATS
More similar products
Delivery terms
2024-07-11 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 26 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Product description
Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A
Supplier parameters
NomNr
LB2N-220ATS
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LB2N-220ATS
Product ID
U-2326975
AC contacts rating @R
10A / 240V AC
Body dimensions
28x21.5x35mm
Coil power consumption
1.2VA
Coil resistance
16kΩ
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
10A / 24V DC
Design
test button
Electrical life
100000 cycles
Indication
LED
Leads
connectors 2,5x0,5mm
Manufacturer
Recoy/RAYEX ELECTRONICS
Mechanical durability
10000000 cycles
Mounting
socket
Operate time
15ms
Operating temperature
-40...60°C
Rated coil voltage
230V AC
Relay series
LB2
Relay variant
industrial
Release time
15ms
Switched voltage
max. 30V DC
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
