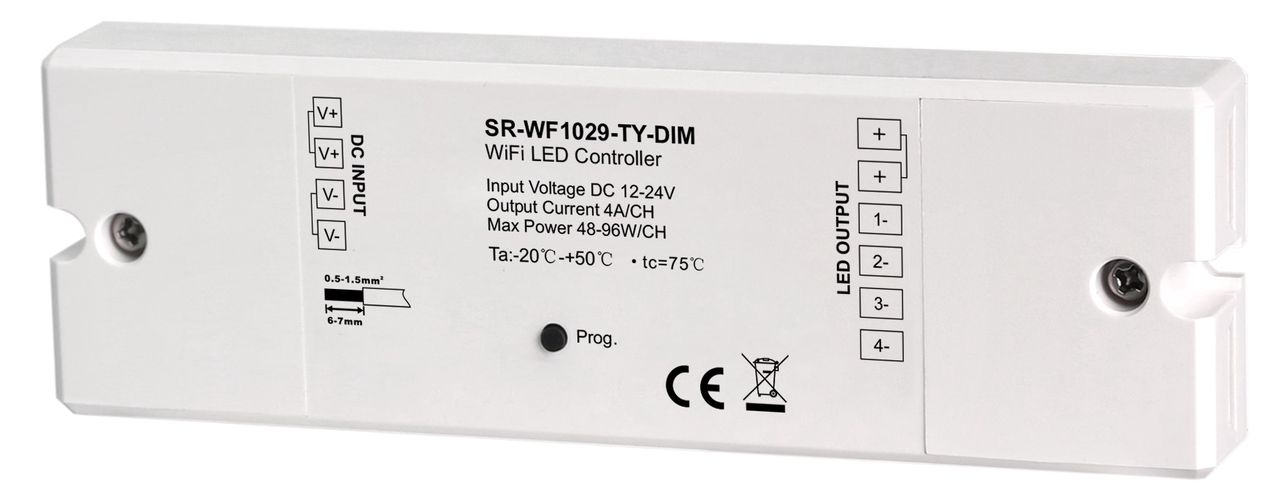

LED Controller 12-24V, 4x4A, one channel, TUYA series, Wi-FI, Sunricher
Product Code: SR-WF1029-TY-DIM
Delivery terms
Pickup In Store
Pickup In Store For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
 Not available | Vilnius Žirmūnai Store |
| Not available | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| Not available | Klaipėda Store |
| Not available | Šiauliai Store |
| Not available | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Product description
Weight
0.083 kg.
Brand
WiFi LED Controller 12-24V, 4x4A, one channel, TUYA series
Operation
1. Do wiring according to wiring diagram.2. Pair the WiFi LED controller to the smart phone or tablet:
Step 1: Download the “TuyaSmart” APP from APP store or google play, and register an account as instructed.
Step 2: Connect your smart phone or tablet WiFi to your home router network.
Step 3: Run the “TuyaSmart” APP on your smart phone or tablet, and add the WiFi LED controller
Step 4: Reset power of the WiFi LED controller 3 times to set it into connecting mode, and LED light blinks rapidly.
Step 5: Confirm that the WiFi LED controller is under connecting mode and configure it to the WiFi network which your smart phone or tablet connected to.
Step 6: Connecting starts, the WiFi LED controller will appear on the APP interface once added successfully.
Step 7: You can control the WiFi LED controller through the APP.
3. Remove the WiFi LED controller from the APP interface.
Specifications:
| Input / Output voltage | 12 - 24V DC |
| Output current | 4 x 4A |
| Output power | 4 x (48 - 96)W |
| Control | WiFi |
| Ingres protection ratio | IP20 |
| Size | 145 x 46.5 x 16mm |
Useful information
Specifications
SKU
336470
Weight
0.083 kg.
Input voltage DC from, V
12
Brand
Connection type
Another
Current, A
4
Type
The controller
Control
One color
Control current, mA
Another
Product code
SR-WF1029-TY-DIM
Input voltage DC to, V
24
