LED panel 30W, 60x60cm, 3600lm, 4000K, surface SLIM, 2in1, LED LINE

Product Code: 478481
no gallery
no gallery
More similar products
New!
Price when using LEMONA+ card:
and get a discount from
1.77
(-3%)
57.23

Price range

AmountPrice with tax (pcs)
1
59.00
2+
53.10
wholesale

Min. qty: 1

Unit: pcs

Total:

59.00

lemona shopPickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)

Not availableNot available
Vilnius Žirmūnai Store
Not availableNot available
Vilnius Naujamiestis Store
Not availableNot available
Kaunas Store
Not availableNot available
Klaipėda Store
Not availableNot available
Šiauliai Store
Available>20 pcs
Central Warehouse (new location)

home deliveryHome delivery in Lithuania 1-2 b.d.


Delivery terms

lemona shop

Pickup In Store

Pickup In Store For free

Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m. When your order is ready for collection, we will inform you by SMS and e-mail.

Quantity in shop

Not availableNot available
Vilnius Žirmūnai Store
Not availableNot available
Vilnius Naujamiestis Store
Not availableNot available
Kaunas Store
Not availableNot available
Klaipėda Store
Not availableNot available
Šiauliai Store
Available>20 pcs
Central Warehouse (new location)
home delivery

Home delivery in Lithuania

Home delivery in Lithuania

After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.

Over €50.00

(Orders up to 1000 kgs)

For free

To €50.00

(Orders up to 3 kgs)

€3.49

To €50.00

(Orders up to 1000 kgs)

€4.99

Product description

Weight
2.45 kg.
Warranty period (months)
60
This product’s power is 30 W and its light’s colour temperature is 4000 K. This item is equipped with diodes of the following type: JUFEI 4014. This item achieves luminous efficacy of 120 lm/W. This item achieves a luminous flux of 3600 lm. The LED's beam angle is 120 °.

The supply voltage range suitable for this item is 220-240V AC.

The ingress protection rating for this item is IP20. The safety and vision comfort is guaranteed by the low UGR rating

The item's high resistance to mechanical damage is guaranteed by the use of dedicated material which the diffuser/cover is made of - polycarbonate

The Ra colour rendering index is 80.

The lifespan of each single diode which this item is equipped with is over 30000. The power factor is PF> 0,9. The number of on/off cycles is 20000.

The diffuser is made of: PMMA The Energy class is .

The IEC protection class is: II.

Specifications

SKU
374649
Weight
2.45 kg.
Height, mm
25
Width, mm
640
Depth, mm
635
Barcodes
5907777478481
Warranty period (months)
60
Power, W
30
Luminosity, lm
3600
Lamp shape
Square
illuminate color
Neutrally white
Product code
478481
Power, W
30

Supplier product description

Panel 2in1 from the LED line® series is a brand new offering for the Polish market, developed with end users and installers in mind.

The panel enables mounting in a suspended ceiling system or on surfaces. There is no need for additional frames on the job, which significantly lowers the installation costs and streamlines work - one installer can mount 50 2in1 fixtures in a day instead of 20 regular framed panels.

The panel is designed for indoor installation. The fixture’s housing is built in line with modern Yellow Free technology, which prevents it from yellowing and keeps the slick appearance for years. The panel’s housing features an integrated power supply unit.

The 2in1 Panel is delivered with surface mounting accessories: wall plugs, screws, mounting hole plugs. The set also contains a quick-coupler for easier installation in a suspended ceiling system.

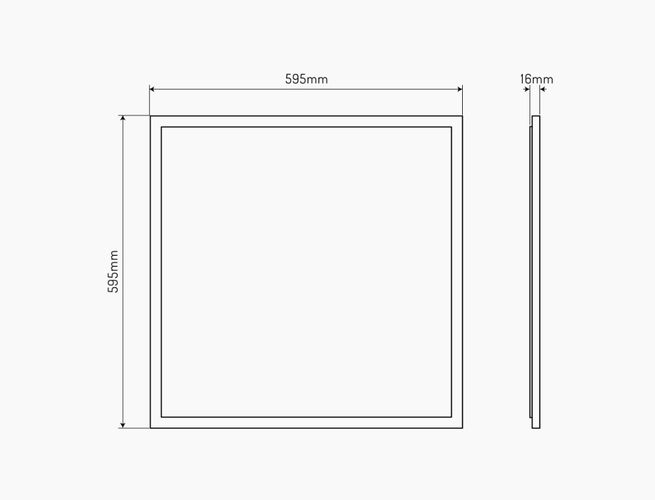

  • Dimensions: 595x595x16 mm
  • Supply voltage range: 220-240 V AC
  • Ingress protection class - IP20
  • The product’s damage resistance is ensured by the lampshade material – polycarbonate • Colour rendering index: Ra ≥ 80
  • Each diode has over 30000 hours of durability. Power Factor: PF > 0.9. Number of on/off cycles: 20000.
  • The diffuser of light emitted by LEDs is made of: PMMA
  • Energy efficiency class: E (A++ according to legacy regulations)
  • Electric shock protection class: II.

The product is covered by a 5-year warranty.

Supplier parameters

Ambient temperature suitable for operation
`-20 ÷ 45
Angle for useful luminous flux (EPREL)
Sphere 360 degrees
Beam angle
120
Beam angle in degrees (EPREL)
120
Chromaticity coordinates x i y (EPREL)
0,38|0,377
Colour
White
Colour consistency in McAdam ellipses
≤6
Colour of the light
White
Colour rendering index Ra
80
Colour-tuneable light source (EPREL)
No
Correlated colour temperature
4000
Date of first placement on the market
01.04.2022
Dimmable
NO
Dimmable function
No
Displacement factor Df
0.9
Energy efficiency class 2019/2015
E
EPREL ID
1116349
Flicker Free
YES
Flicker metric PstLM
1
For indoor use
YES
Frequency of the supply voltage
50/60Hz
Full box quantity
8
GPC classification
10005639 - Lighting - permanently mounted
GS1 unit
szt
Height
16
IEC protection class
II
IK protection rating
02
Installation method
2in1 recessed and surface
IP protection rating
20
Is the product equipped with an integrated light source? (EPREL)
No
Is this product a light source? (EPREL)
Yes
Lamp's warm-up time to 60%
1
LED quantity
196
LED type
JUFEI 4014
Length
595
LGP
PMMA
Lifespan
50000
Lifetime L70B50
50000
Luminous efficacy
120
Luminous flux
3600
Master carton weight (kg)
21
Material (cover)
polycarbonate
Material (housing)
aluminum
Net content of the product
1
Networked standby power Pnet (EPREL)
30
Non-directional or directional light source (EPREL)
NDLS
Number of on/off cycles
20000
On-mode power Pon (EPREL)
30
Painting technique
Powder coated
Power Factor
0,9
Product code
478481
Product weight with packaging (g)
2450
R9 colour rendering index value (EPREL)
6
Status
Active (on sale)
Stroboscopic effect metric SVM
0.4
Supply voltage range and voltage type
220-240V AC
Survival factor
0.9
The lumen maintenance factor
96
Total luminous flux (EPREL)
3600
UGR rating
UGR<22
Useful luminous flux Φuse (EPREL)
3600
Warranty (years)
5
Wattage
30
Width
595
Working current
0,1449
