Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/30VDC TE Connectivity
Product Code: RTE24024F

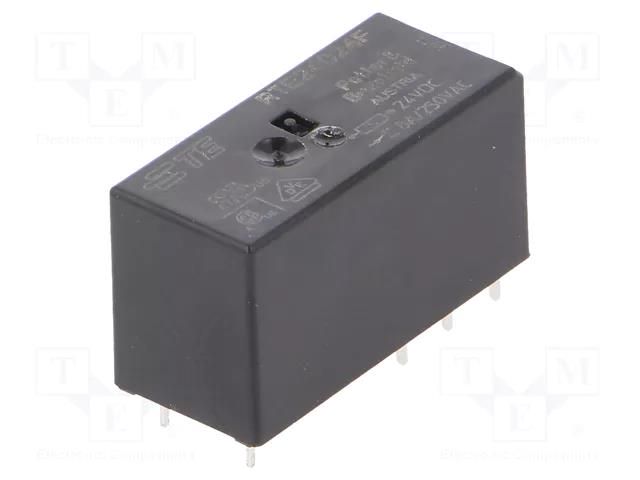

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-02 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 8 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/30VDC TE Connectivity
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/30VDC
Supplier parameters
Product code
RTE24024F
AC contacts rating @R
8A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil power consumption
400mW
Coil resistance
1.44kΩ
Coil voltage min.
16.8V DC
Contact current max.
8A
Contact material
AgNi 90/10
Contacts configuration
DPDT
DC contacts rating @R
8A / 30V DC
Height
15.7mm
IP rating
IP67
Manufacturer
TE Connectivity
Manufacturer series
RT2
Mounting
PCB
Number of pins
8
Operate time
8ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
6ms
Switched voltage
max. 300V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
TE Connectivity
Supplier's product code
RTE24024F
Product ID
U-315201
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
