Product description

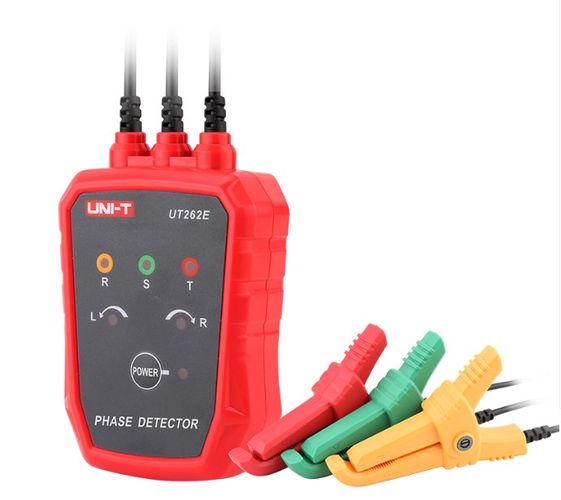

UT262E Non-Contact Phase Detector
UT262E is a clamp-type non-contact phase detector. It can avoid electric sparks due to contacting with bare wires, reducing the risk of electrical shock to electricians and other professional personnel. UT262E can also be used for live wire detection, simple electrical inspection, phase identification, missing-phase judgment, wire breaker searching, and positive or negative states through audio and visual indication.
It is a perfect tool for phase sequence detection, motor mounting, and wires maintenance. It improves the safety of field testing, ensures the safety of operators and increases productivity.
Features of UT262E Non-Contact Phase Detector
Certificates: CE, UKCA
● Phase-detection
● Phase missing detection
● Phase sequence detection
● Non-contact detection
● Three-phase AC voltage: 70-1000V AC
● LED & Buzzer indication
● Automatical power off
Specifications of UT262E Non-Contact Phase Detector
|
Models |
UT262E |
|
|
Function/Application |
Phase detection, live wire examination, power inspection, phase loss judgment, breakpoints finding, breakpoints positioning. |
|
|
Measurement method |
Non-contact detection |
|
|
Phase wire position |
Put the wires at the position between “▲” and “▼” marked on the clamp |
|
|
Voltage range |
Three-phase voltage, 70-1000V AC （45Hz ～ 66Hz) |
|
|
Operating frequency |
50Hz/60Hz（±10%） |
50Hz/60Hz, Automatically identify within the range of frequency error of standard power grid, the frequency range of other variable-frequency power supply is not examined. |
|
Test method |
Non-contact clamping |
Diameter of wires can be clamped: ø2mm～ø40mm |
|
Power supply |
1.5V AA*2 alkaline batteries |
Continuous working time: more than 20 hours |
|
Power consumption |
Power-off current is less than 10uA @3V |
Maximum average working current: 70mA @3V |
|
Low battery indication |
<2.4V |
The indicator light flashes slowly to indicate low battery. |
|
<2V |
The buzzer beeps twice to indicate power off. |
|
|
Auto power off |
After the detector is turned on for about 5 minutes, it will power off automatically and the buzzer will beep twice. |
|
|
Operating temperature |
32～122°F (0～50°C) |
|
|
Operating humidity |
>85% (Non condensing) |
|
|
Storage temperature |
4～140°F (-20～60°C) |
|
|
Altitude |
< 2000m |
|
|
Button life |
10000 cycles |
|
|
Insulation intensity |
3.7kVrms |
|
|
Buzzing decibel |
65～70dB |
|
|
IP rating |
IP52 |
|
|
Safety certification |
CE, UKCA |
EN61010-1: 2001, EN61010-031: 2002 |
|
Safety rating |
Pollution Class 2, CAT Ⅳ (600V), CAT III(1000V), 8000V transient overvoltage (Only for the clamp) |
|
|
General Characteristics |
||
|
Product Color |
Red, black |
|
|
Product weight (include batteries) |
237.7g (including batteries); 191.5g (excluding batteries,REF) |
|
|
Product Dimension |
88mm*30mm*66mm (REF) |
|
|
Standard accessories |
User manual: 1 pc |
|
|
Standard package |
Gift box, carrying bag |
|
|
Standard quantity per carton |
5pcs |
|
|
Standard carton Dimension |
345X195X200mm |
|
|
Standard carton gross weight |
238 g |
|
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T UT262E Non-Contact Phase Detector
The UNI-T UT262E is a professional-grade Non-Contact Phase Detector, also known as a phase tester or voltage tester, that belongs to the Indicators, Voltage and Continuity Testers category. This innovative tool significantly enhances safety and efficiency in electrical work.
Key Features and Functions
- Non-Contact Detection: Eliminates the risk of electric shock by avoiding direct contact with live wires.
- Phase Detection: Accurately identifies the phase sequence and positive/negative states.
- Live Wire Detection: Quickly and safely detects live wires.
- Simple Electrical Inspection: Ideal for basic electrical checks and troubleshooting.
- Phase Identification: Easily identifies individual phases in a three-phase system.
- Missing-Phase Judgment: Detects missing phases in a power supply.
- Wire Breaker Searching: Helps locate breaks in wiring.
- Audio and Visual Indication: Provides clear and immediate feedback through both sound and light signals.
Applications
The UT262E is suitable for a wide range of applications, including:
- Phase sequence detection
- Motor mounting
- Wire maintenance
- Electrical safety testing
Why Choose the UNI-T UT262E?
The UNI-T UT262E Non-Contact Phase Detector offers superior safety, increased productivity, and ease of use compared to traditional contact methods. Its non-contact design minimizes the risk of electrical shock, while its clear visual and audible indicators ensure quick and accurate results. This makes it an indispensable tool for electricians and other professionals working with electrical systems.
| Feature | Benefit |
|---|---|
| Non-contact measurement | Enhanced safety |
| Clear visual and audible indicators | Improved accuracy and speed |
| Durable design | Long-lasting performance |
| Easy to use | Increased efficiency |
