Power Supply PoE 24V 1A 24W 2xRJ45 with AC Cable
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
 Not available | Kaunas Store |
| 2 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 9 pcs | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| 2 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 9 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Product description

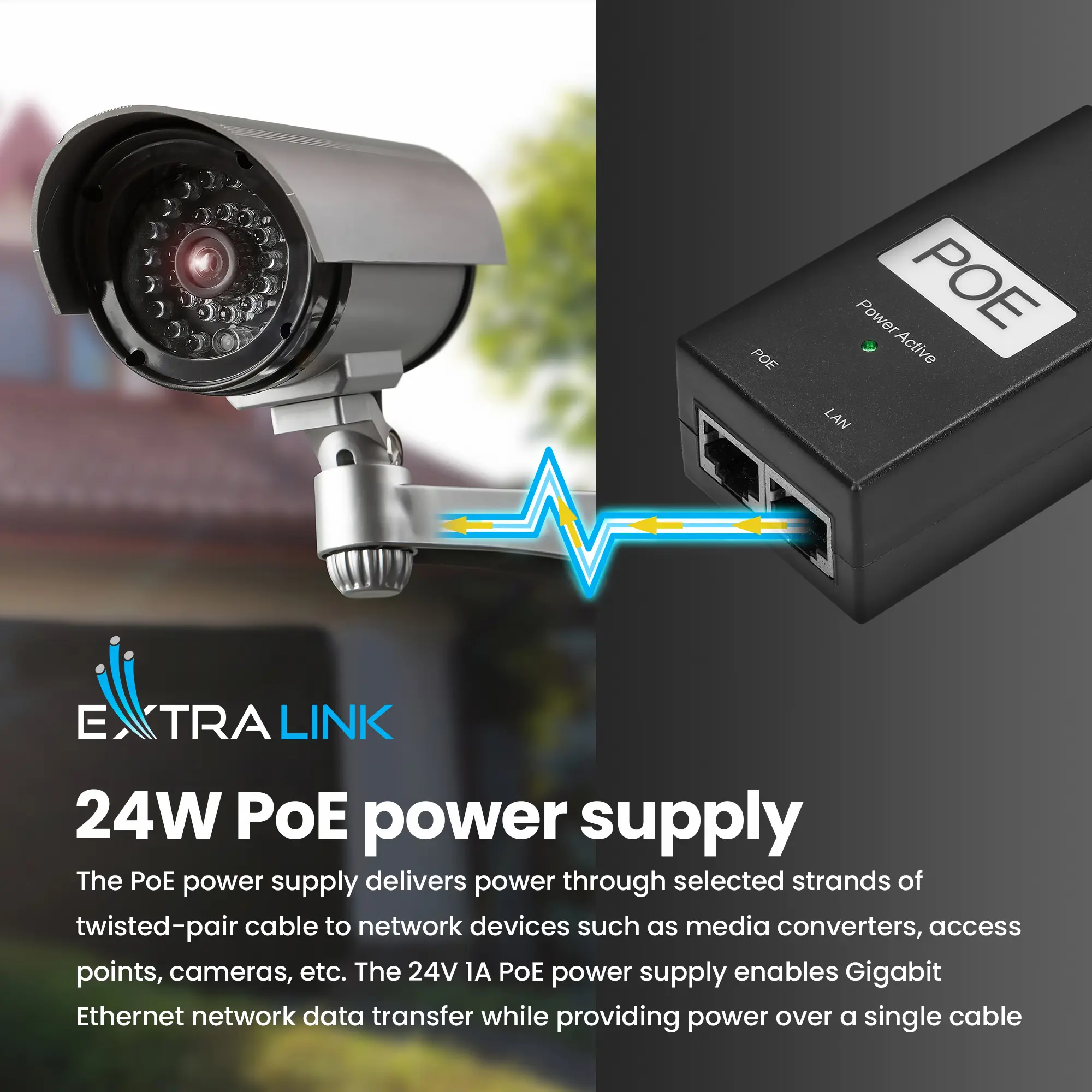

Extralink poe power adapter (power adapter) designed to supply electricity through selected twisted-pair cable wires to network devices such as media converter, access points, cameras etc. The 24V 1A poe power supply enables the transmission of Gigabit Ethernet network data while supplying power through the same cable. This model allows transmission at the speed of gigagbit eth, is a passive poe solution and does not comply with the ieee 8023ataf standard. Unlike power supplies with 5.5/2.1mm jacks, the Poe adapter allows direct power supply to Gigabit poe devices, no additional network accessories are required.

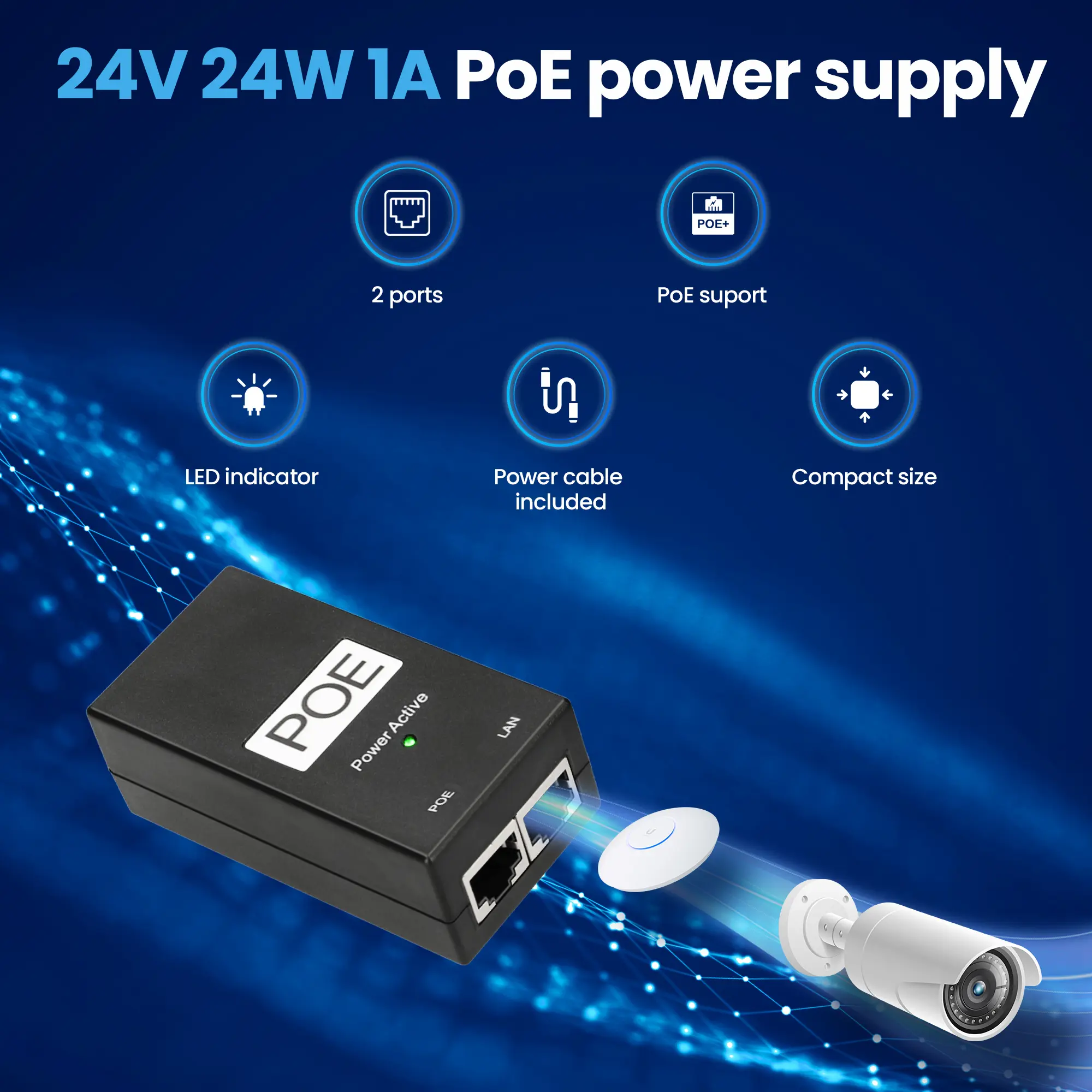

The power supply has a 1.2 meter long power cable terminated with a clover-type connector, has two RJ45 ports. One of them connects the device to be powered and the other one is used for patchcord connection to a switch or router. It can be installed in places like living quarters, teletechnical rooms or rack cabinets.
The LED indicates the correct operation of the device. If one of the following protections is tripped: short-circuit and overload protection, the power supply cuts off the voltage from the device. After the failure stops, the power supply unit will automatically restore the voltage.
| Features / filters | |
| Built-in display | No |
| Built-in fan | No |
| Cooling type | Passive |
| Detachable power connectors | Yes |
| Easy to install | Yes |
| Ethernet LAN | Yes |
| Input frequency | 50/60 |
| Input voltage | 230 |
| LED indicators | Yes |
| Output current | 1 |
| Output power | 24 |
| Output voltage | 24 |
| Power adapter included | Yes |
| Power current type | AC-to-DC |
| Power protection features | Overload, Short circuit |
| Power supply type | Indoor |
| Product colour | Black |
| Purpose | PoE adapter |
| Quantity per pack | 1 |
| RJ-45 ports quantity | 2 |
Specifications
Other products of the same brand
Supplier product description
PoE Extralink 24V 24W power supply
Extralink poe power adapter (power adapter) designed to supply electricity through selected twisted-pair cable wires to network devices such as media converter, access points, cameras etc. The poe 24V 1A power supply enables the transmission of network data in gigabit ethernet while supplying power in the same cable. This model allows transmission at the speed of gigagbit eth, is a passive poe solution and does not comply with the ieee 8023ataf standard. Unlike power supplies with a 5.5/2.1mm jack, the Poe adapter allows direct power supply to the poe devices, no additional network accessories are required.
The power supply has a 1.2 meter long power cable terminated with a clover-type connector, has two RJ45 ports. One of them connects the device to be powered and the other one is used for patchcord connection to a switch or router. It can be installed in places like living quarters, teletechnical rooms or rack cabinets.
The LED indicates the correct operation of the device. If one of the following protections is tripped: short-circuit and overload protection, the power supply cuts off the voltage from the device. After the failure stops, the power supply unit will automatically restore the voltage.
| Built-in display | No |
| Built-in fan | No |
| Cables included | AC |
| Cooling type | Passive |
| Detachable power connectors | Yes |
| Easy to install | Yes |
| Ethernet LAN | Yes |
| Input frequency | 50/60 |
| Input voltage | 230 |
| LED indicators | Power |
| Output current | 1 |
| Output power | 24 |
| Output voltage | 24 |
| Power adapter included | Yes |
| Power current type | AC-to-DC |
| Power protection features | Overload, Short circuit |
| Power supply type | Indoor |
| Product colour | Black |
| Purpose | PoE adapter |
| Quantity per pack | 1 |
| RJ-45 ports quantity | 2 |
