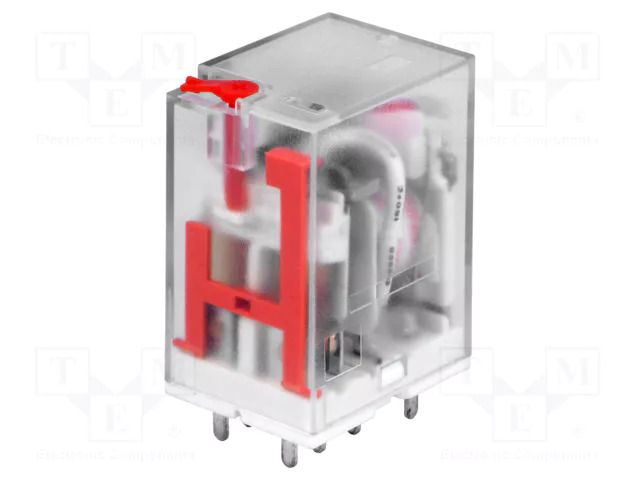

Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Product Code: LB2N-230ATP
More similar products
Delivery terms
2024-07-11 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1166 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Product description
Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A
Useful information
Supplier parameters
NomNr
LB2N-230ATP
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LB2N-230ATP
Product ID
U-233801
AC contacts rating @R
10A / 240V AC
Body dimensions
28x21.5x35mm
Coil power consumption
1.2VA
Coil resistance
16kΩ
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
10A / 24V DC
Design
test button
Electrical life
100000 cycles
Indication
LED
Leads
for PCB
Manufacturer
Recoy/RAYEX ELECTRONICS
Mechanical durability
10000000 cycles
Mounting
PCB
Operate time
15ms
Operating temperature
-40...60°C
Rated coil voltage
230V AC
Relay series
LB2
Relay variant
industrial
Release time
15ms
Switched voltage
max. 30V DC
Type of relay
electromagnetic
