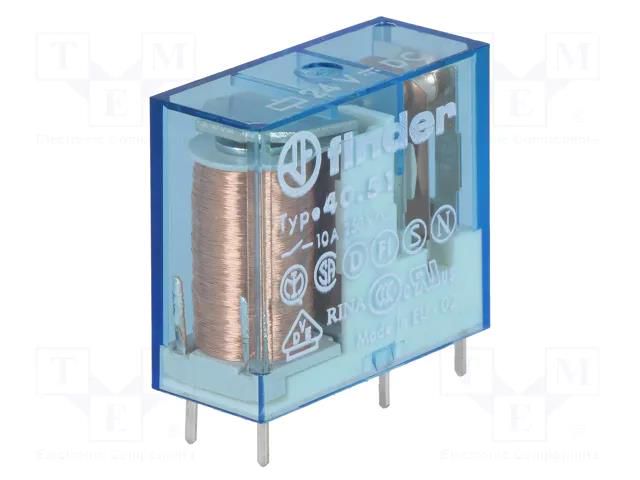

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A FINDER
Product Code: 40.51.9.024.000
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-05-07 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1196 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A FINDER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A
Useful information
Supplier parameters
Product code
40.51.9.024.000
Supplier's product code
40.51.9.024.000
Product ID
U-87490
AC contacts rating @R
10A / 250V AC
Body dimensions
29x12.4x25mm
Coil current
27mA
Coil power consumption
650mW
Coil resistance
900Ω
Contact current max.
20A
Contact material
AgNi
Contacts configuration
SPDT
DC contacts rating @R
10A / 30V DC
Manufacturer
FINDER
Manufacturer series
40.51
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Switched voltage
max. 220V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
FINDER
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
