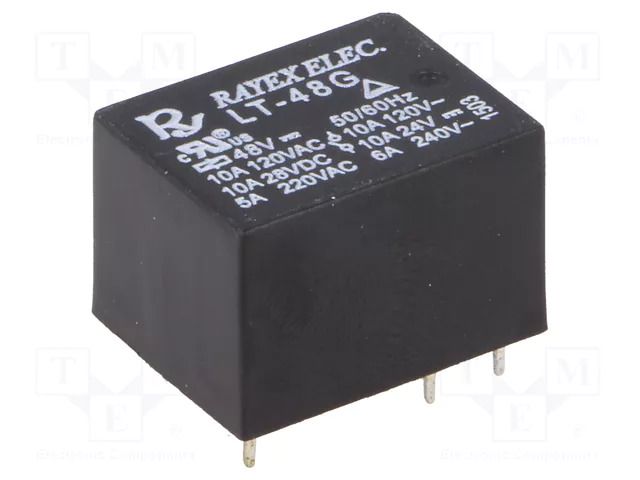

Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Product Code: LT-48G
More similar products
Delivery terms
2024-09-06 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 218 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 10A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 10A
Useful information
Supplier parameters
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LT-48G
Product ID
U-243579
AC contacts rating @R
10A / 120V AC
Body dimensions
21.8x16.8x14.2mm
Coil current
10.4mA
Coil power consumption
450mW
Coil resistance
4.6kΩ
Contact current max.
10A
Contact material
AgCdO
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 24V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Mounting
PCB
Operate time
10ms
Operating temperature
-25...60°C
Rated coil voltage
48V DC
Relay series
LT
Relay variant
miniature
Release time
10ms
Switched voltage
max. 100V DC
Terminal pitch
5mm
Type of relay
electromagnetic
NomNr
LT-48G
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
