Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC ZETTLER
Product Code: AZ762-1A-24DE

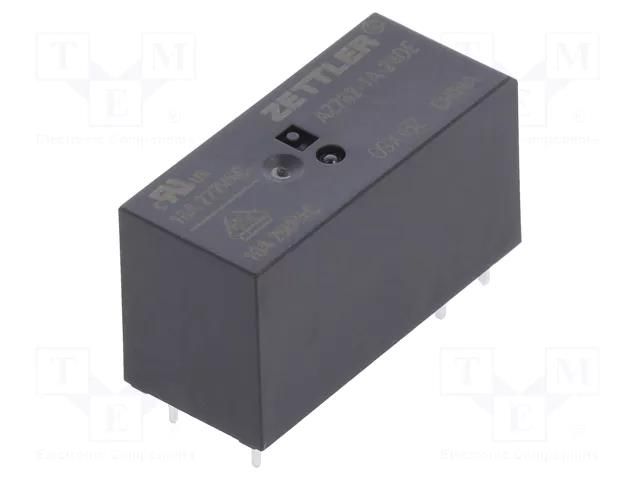

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-04-24 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 5131 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC ZETTLER
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
Useful information
Supplier parameters
Product code
AZ762-1A-24DE
AC contacts rating @R
16A / 250V AC
Body dimensions
29x12.7x15.7mm
Coil power consumption
200mW
Coil resistance
1.44kΩ
Coil voltage max.
49.4V DC
Coil voltage min.
16.8V DC
Contact current max.
16A
Contact resistance
50mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
16A / 24V DC
Manufacturer
ZETTLER
Manufacturer series
AZ762
Mounting
PCB
Operate time
7ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
3ms
Switched voltage
max. 125V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
ZETTLER
Supplier's product code
AZ762-1A-24DE
Product ID
U-121270
