Features of UT15B/17B/18B Max True RMS Digital Multimeters
True RMS Digital Multimeter, 1000V AC/DC; 10A AC/DC; 60M?; 6000uF; VFD: 600V; 500?;
Product Code: UT17B MAX
New
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 2 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 1 pcs | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 2 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 1 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description

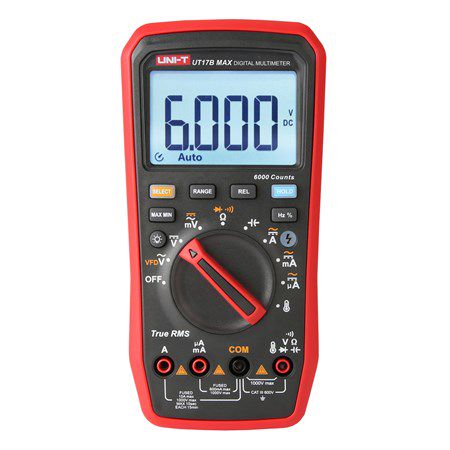

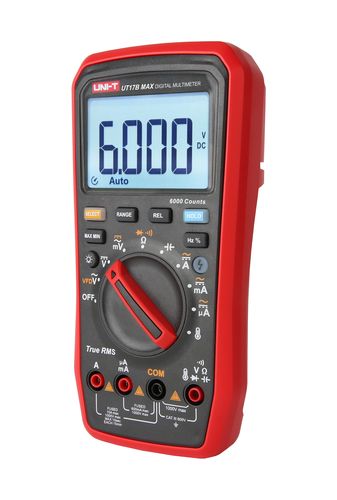

UT15B/17B/18B Max True RMS Digital Multimeters
UT15B/17B/18B MAX series True RMS multi-meters have a compact and portable design, fast response, strong anti-interference to EMC interference, and come with standard gold-plated test leads and gold-plated fine-tipped test leads.They also feature full-range 1000V input protection, making them the ideal tool for electronic and electrical engineers.
Models: UT15B MAX, UT17B MAX, UT18B MAX
Certificates: CE, UKCA, cETLus, REACH, RoHS
● True RMS measurement
● Compact design
● V.F.D function
● Fast measurement of Continuity
● Fast measurement of Capacitance
● Two test probes (standard & fine-tipped)
● Strong EMC anti-interference
● Full-range input protection
Specifications of UT15B/17B/18B Max True RMS Digital Multimeters
|
Technical Specifications |
UT15B MAX |
UT17B MAX |
UT18B MAX |
|
|
Certificates |
CE, UKCA, cETLus, REACH, RoHS |
|||
|
Voltage (DC) |
600.0mV/6.000V/60.00V/600.0V/1000V |
±(0.4%+3) |
±(0.4%+3) |
±(0.4%+3) |
|
Voltage (AC) |
600.0mV/6.000V/60.00V/600.0V/1000V |
±(0.5%+5) |
±(0.5%+5) |
±(0.5%+5) |
|
VFD (Voltage) |
600.0V |
±(8%) |
±(8%) |
±(8%) |
|
Current (AC) |
600.0µA/6000µA |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
|
Current (DC) |
600.0µA/6000µA |
±(1.2%+3) |
±(1.2%+3) |
±(1.2%+3) |
|
Resistance |
600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
|
Capacitance |
6.000nF/60.00nF~600.0µF/6000µF |
±(2.0%+5) |
±(2.0%+5) |
±(2.0%+5) |
|
Frequency(Hz) |
10Hz~10MHz |
±(0.1%+3) |
±(0.1%+3) |
±(0.1%+3) |
|
Duty cycle |
1%~99.9% |
±(1.0%+4) |
±(1.0%+4) |
±(1.0%+4) |
|
Temperature(℃/℉) |
-55℃~500℃/–67°F~932°F |
– |
±2℃/±4℉ |
±2℃/±4℉ |
|
Main features |
||||
|
Display count |
6000 |
6000 |
6000 |
|
|
Continuity / Diode |
√ |
√ |
√ |
|
|
Data hold |
√ |
√ |
√ |
|
|
MAX/MIN |
√ |
√ |
– |
|
|
Relative mode |
√ |
√ |
√ |
|
|
Backlight (adjustable) |
√ |
√ |
√ |
|
|
Auto range/Manual range |
√ |
√ |
√ |
|
|
Auto power off |
√ |
√ |
√ |
|
|
Low battery indication |
√ |
√ |
√ |
|
|
Audible & Visual alarm |
√ |
√ |
√ |
|
|
LED test |
– |
– |
√ |
|
|
Mis-plug alarm |
√ |
√ |
√ |
|
|
Any-key wake up |
√ |
√ |
√ |
|
|
Overvoltage category |
CATⅢ 600V |
CATⅢ 600V |
CATⅢ 600V |
|
|
General Characteristics |
||||
|
Power supply |
2*1.5V AA |
2*1.5V AA |
2*1.5V AA |
|
|
Product color |
426U+1797C |
426U+1797C |
426U+1797C |
|
|
Product weight |
455g |
455g |
455g |
|
|
Product dimension |
182mm*91mm*45mm |
182mm*91mm*45mm |
182mm*91mm*45mm |
|
|
Accessories |

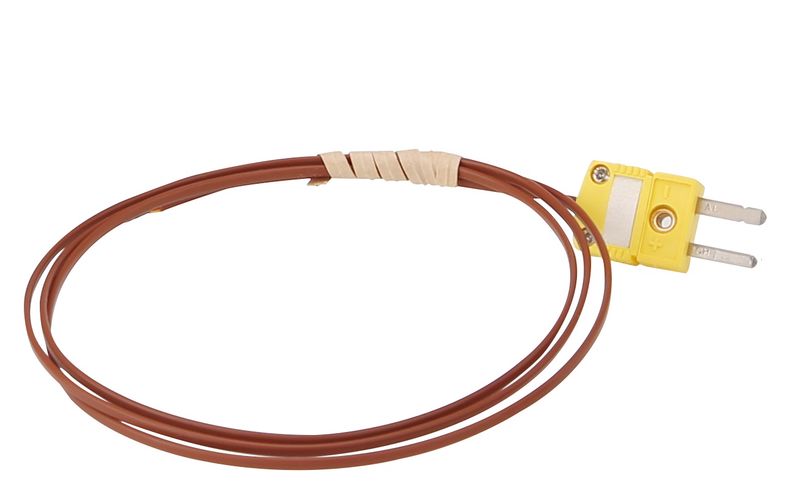

1pcs User manual, 2 pair Test lead(normal gold plated probe & Fine-tipped probe),1pcs K-type thermocouple (UT17B/UT18B MAX only), 2pcs battery, Magnetic hanger(optional) |
|||
|
SPQ |
10 pcs |
10 pcs |
10 pcs |
|
|
Package dimension |
480×370×195mm |
480×370×195mm |
480×370×195mm |
|
|
Standard package gross weight |
Around 9kg |
Around 9kg |
Around 9kg |
|
Specifications
SKU
420736
Weight
0 kg.
Barcodes
6935750517192
Warranty period (months)
12
Measuring voltage AC, V
1000
Measured current AC, A
10
The voltage DC is measured, V
1000
Measured current DC, A
10
Brand
category
CAT III 600V
Additional measurements
The capacity
Product code
UT17B MAX
Height, mm
230
Width, mm
170
Depth, mm
70
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
UNI-T True RMS Digital Multimeter
This UNI-T True RMS Digital Multimeter is a versatile and reliable tool for various electrical measurements. It's ideal for professionals and hobbyists alike needing accurate and dependable readings.
Key Features and Specifications
- True RMS Measurement: Provides accurate readings even with non-sinusoidal waveforms.
- Voltage Measurement: Measures AC/DC voltage up to 1000V.
- Current Measurement: Measures AC/DC current up to 10A.
- Resistance Measurement: Measures resistance up to 60MΩ.
- Capacitance Measurement: Measures capacitance up to 6000µF.
- Frequency Measurement: Measures frequency up to 500Hz.
- Voltage Measurement (VFD): Measures voltage up to 600V.
Applications
This digital multimeter is suitable for a wide range of applications, including:
- Electrical troubleshooting
- Automotive diagnostics
- Industrial maintenance
- Electronics repair
- HVAC/R work
Why Choose This UNI-T Multimeter?
This UNI-T multimeter offers a combination of accuracy, durability, and ease of use. The True RMS functionality ensures precise measurements in various situations. Its wide range of measurement capabilities makes it a valuable asset for any professional or serious hobbyist. Choose this multimeter for reliable performance and long-lasting value.
Product Details
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Type | Digital Multimeter |
| True RMS | Yes |
