Features of UT25CL Cable locator
Wire Cable Metal Pipe Locator Detector Circuit Tracer NCV 8V-480V
Product Code: UT25CL
New
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 2 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 11 pcs | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| 2 pcs | Vilnius Žirmūnai Store |
| 2 pcs | Vilnius Naujamiestis Store |
| 2 pcs | Kaunas Store |
| 2 pcs | Klaipėda Store |
| 2 pcs | Šiauliai Store |
| 11 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description

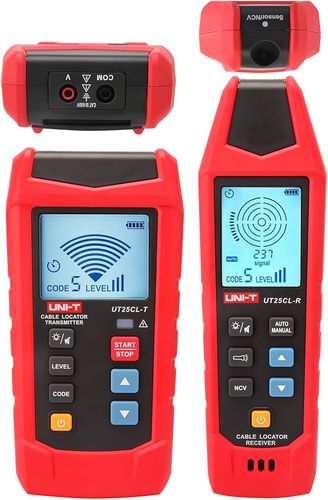

UT25CL Cable locator
The UT25CL Cable Locator is a powerful device consisting of a transmitter and receiver. With state-of-the-art sensors, it effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs.
This tool detects conductors, identifies interruptions or short circuits, traces underground cables, and locates fuses and associated devices. It also detects short circuits and open circuits in underfloor heating, traces metal water pipes and heating pipelines, and supports up to 8 transmitters.
It is perfect for residential or commercial projects.
Certifications: CE, RoHS
● Find conductors inside the wall, and detect conductor interruptions or short circuits
● Trace the underground cable paths
● Locate fuses and devices associated with the fuses
● Identify short circuits and open circuits in the underfloor heating(metal)
● Trace metal water pipes and metal heating pipelines
● Adjust the sensitivity of the receiver automatically or manually (3 adjustable levels)
● Flashlight and backlight functions
● Automatic shutdown function
● One receiver can support up to 8 transmitters
● Energized wire detection: up to 480V(AC/DC)
● LED and buzzer indications
● CE, RoHS
Specifications
| Technical Specifications | ||
| Features | 1, Find conductors inside the wall, detect conductor interruptions or short circuits. 2, Trace the underground cable paths. 3, Locate fuses and devices associated with the fuses. 4, Identify short circuits and open circuits in the underfloor metal heating. 5, Trace metal water pipes and metal heating pipelines. 6, Adjustable sensitivity (Receiver: 3 levels; Transmitter: 9 levels) |
|
| Transmitter | ||
| Output signal | 33KHZ | |
| Energized wire voltage ragne | AC/DC 8~480V; AC: 50/60Hz/ 2.5% ±3deg | |
| Screen | Segment code LCD (TN; Translucent ) | |
| Backlight | √ | |
| Code value | 0,1,2,3,4,5,6,7 | |
| Signal strength | three level: 1, 2, 3 | |
| Unipolar test | √(energized wire test, max voltage 480V) | |
| Bipolar test | √(energized wire test, max voltage 480V) | |
| ELV LED indicator | 1. If the input voltage exceeds 25V, the ELV LED turns on. 2. As the voltage rises, the brightness of the ELV LED increases. 3. In any other case, the ELV LED will be dim or not illuminated. |
|
| Receiver | ||
| Receiving frequency | 33KHz | |
| Tracing depth | Around 0~2.5m (unipolar mode; single-circuit: 2.5m) | |
| Around 0~0.5m (bipolar mode) | ||
| NCV voltage range | 80V ~ 1000V, 50Hz/60Hz | |
| Voltage detection depth | Around 0~0.4 meters | |
| Code value | 0,1,2,3,4,5,6,7 | |
| Signal strength | three level: 1, 2, 3 | |
| Multi-Transmitors compatible | Up to 8pcs | |
| Screen | Segment code LCD (TN; Translucent ) | |
| Others | ||
| Flash light | √ | |
| Backlight | √ | |
| Manual sensitivity adjustment | √ | |
| Over voltage category | CAT III 480V | |
| Pollution rating | 2 | |
| IP rating | IP54 | |
| Certificates | CE , RoHS | |
Specifications
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Experimental product description generated by artificial intelligence
UNI-T Wire Cable Metal Pipe Locator Detector Circuit Tracer NCV 8V-480V
Product Category: Metals & Cables Detectors
The UNI-T Wire Cable Metal Pipe Locator Detector Circuit Tracer NCV 8V-480V is a professional-grade tool designed for accurate and efficient location of live wires, cables, metal pipes, and other conductive materials. This versatile device is essential for electricians, plumbers, construction workers, and DIY enthusiasts alike.
Key Features and Benefits:
- Accurate Detection: Pinpoints the exact location of hidden wires and pipes, minimizing the risk of accidental damage.
- Wide Voltage Range: Operates effectively on a broad voltage range (8V-480V), making it suitable for various applications.
- Versatile Applications: Identifies a wide range of materials, including live wires, cables, and metal pipes.
- Time-Saving: Significantly reduces the time and effort required for locating hidden utilities.
- Improved Safety: Helps prevent accidental damage to underground utilities and ensures a safer work environment.
- Reliable Performance: Built with high-quality components for long-lasting durability and reliable performance.
Why Choose the UNI-T Wire Cable Metal Pipe Locator?
This cable and pipe detector offers superior accuracy and reliability compared to other similar products on the market. Its wide voltage range and versatile applications make it an indispensable tool for any professional or serious DIY enthusiast. The UNI-T brand is synonymous with quality and precision, ensuring you receive a product you can depend on for years to come. Investing in this tool translates to increased efficiency, improved safety, and reduced risk of costly mistakes.
Applications:
This versatile tool is ideal for a wide range of applications, including:
- Electrical work
- Plumbing installations
- Construction projects
- Home improvement tasks
- HVAC maintenance
Note: Specific specifications and operating instructions can be found in the user manual included with the product.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
