Coaxial Cable CB113 500m, EMOS
ΠΠΎΠΌΠ΅Ρ ΠΏΡΠΎΠ΄ΡΠΊΡΠ°: S5268
Π‘ΡΠΎΠΊΠΈ Π΄ΠΎΡΡΠ°Π²ΠΊΠΈ
2024-11-28 ΠΠ»Π°Π½ΠΈΡΡΠ΅ΠΌΠ°Ρ Π΄ΠΎΡΡΠ°Π²ΠΊΠ°, Π΅ΡΠ»ΠΈ ΠΡ Π·Π°ΠΊΠ°ΠΆΠ΅ΡΠ΅ ΡΠ΅ΠΉΡΠ°Ρ
Π’ΠΎΠ²Π°Ρ Π·Π°ΠΊΠ°Π·ΡΠ²Π°Π΅ΡΡΡ ΡΠΎ ΡΠΊΠ»Π°Π΄Π° ΠΏΠΎΡΡΠ°Π²ΡΠΈΠΊΠ°. ΠΡΠ»ΠΈ ΠΏΠΎΡΡΠ°Π²ΡΠΈΠΊ Π½Π΅ ΡΠΌΠΎΠΆΠ΅Ρ Π΄ΠΎΡΡΠ°Π²ΠΈΡΡ Π΄Π°Π½Π½ΡΠΉ ΡΠΎΠ²Π°Ρ Π΄ΠΎ ΡΠΊΠ°Π·Π°Π½Π½ΠΎΠΉ Π΄Π°ΡΡ, ΠΌΡ ΠΈΠ½ΡΠΎΡΠΌΠΈΡΡΠ΅ΠΌ ΠΠ°Ρ ΠΏΠΎ ΡΠ»Π΅ΠΊΡΡΠΎΠ½Π½ΠΎΠΉ ΠΏΠΎΡΡΠ΅.
 ΠΠΎΡΡΡΠΏΠ½ΠΎ | Π‘ΠΊΠ»Π°Π΄ ΠΏΠΎΡΡΠ°Π²ΡΠΈΠΊΠ° |
ΠΠΎΡΡΠ°Π²ΠΊΠ° Π½Π° Π΄ΠΎΠΌ
ΠΠΎΡΡΠ°Π²ΠΊΠ° Π½Π° Π΄ΠΎΠΌ
ΠΠΎΡΠ»Π΅ ΠΏΠ΅ΡΠ΅Π΄Π°ΡΠΈ ΡΠΎΠ²Π°ΡΠ° ΠΊΡΡΡΠ΅ΡΡ ΠΌΡ ΡΠΎΠΎΠ±ΡΠΈΠΌ Π²Π°ΠΌ ΠΎΠ± ΡΡΠΎΠΌ ΠΏΠΎ ΡΠ»Π΅ΠΊΡΡΠΎΠ½Π½ΠΎΠΉ ΠΏΠΎΡΡΠ΅.
ΠΠΎΠ»Π΅Π΅ 50,00 β¬ (ΠΠ°ΠΊΠ°Π·Ρ Π΄ΠΎ 1000 ΠΊΠ³) | ΠΠ΅ΡΠΏΠ»Π°ΡΠ½ΠΎ |
Π 50,00 β¬ (ΠΠ°ΠΊΠ°Π·Ρ Π΄ΠΎ 3 ΠΊΠ³) | 3,49 β¬ |
Π 50,00 β¬ (ΠΠ°ΠΊΠ°Π·Ρ Π΄ΠΎ 1000 ΠΊΠ³) | 4,99 β¬ |
ΠΠΎΠ»ΡΡΠ΅Π½ΠΈΠ΅ Π² ΠΏΠΎΡΡΠΎΠΌΠ°ΡΠ΅
ΠΠΎΠ»ΡΡΠ΅Π½ΠΈΠ΅ Π² ΠΏΠΎΡΡΠΎΠΌΠ°ΡΠ΅
ΠΠΎΡΠ»Π΅ ΠΏΠ΅ΡΠ΅Π΄Π°ΡΠΈ ΡΠΎΠ²Π°ΡΠ° ΠΊΡΡΡΠ΅ΡΡ ΠΌΡ ΡΠΎΠΎΠ±ΡΠΈΠΌ Π²Π°ΠΌ ΠΎΠ± ΡΡΠΎΠΌ ΠΏΠΎ ΡΠ»Π΅ΠΊΡΡΠΎΠ½Π½ΠΎΠΉ ΠΏΠΎΡΡΠ΅.
2,39 β¬
ΠΠΏΠΈΡΠ°Π½ΠΈΠ΅ ΡΠΎΠ²Π°ΡΠ° ΠΎΡ ΠΏΠΎΡΡΠ°Π²ΡΠΈΠΊΠ°
Product description

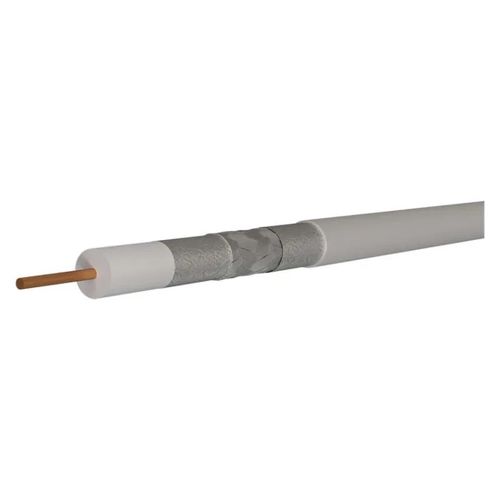

Coaxial cable with foam dielectric and triple shielding. The cable is used for tertiary cabling and indoor cabling. Outer diameter of the cable is 6.8 mm.
ΠΠ°ΡΠ°ΠΌΠ΅ΡΡΡ ΡΠΎΠ²Π°ΡΠ° ΠΏΠΎΡΡΠ°Π²ΡΠΈΠΊΠ°
Product code
S5268
APE = air dielectric
not stated
capacity (pF/m)
53
coaxial cable type
CB113
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
7,05 mm
diameter of the inner conductor
1.13 mm
dielectric type, diameter
FPE 4.8 mm
factor of shortening
0.85
FPE = Foam dielectric
yes
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 Β°C (MOhm/km)
1 000
intended use
terciary distribution CATV, SAT
material of the cable jacket
PVC (HD 624)
material of the inner conductor
copper (Cu)
material of the shielding
tinned cooper (CuSn)
max. attenuation at 20 Β°C (dB/100 m) 1 000 MHz
19.3
max. attenuation at 20 Β°C (dB/100 m) 10 MHz
2.2
max. attenuation at 20 Β°C (dB/100 m) 100 MHz
5.8
max. attenuation at 20 Β°C (dB/100 m) 2 000 MHz
29.5
max. attenuation at 20 Β°C (dB/100 m) 450 MHz
12.5
max. attenuation at 20 Β°C (dB/100 m) 650 MHz
15.3
max. attenuation at 20 Β°C (dB/100 m) 860 MHz
18.5
max. DC resistance at 20 Β°C (Ohm/km) - inner core
18.5
max. DC resistance at 20 Β°C (Ohm/km) - outer core
38.5
min. bend radius single/multiple
35/70 mm
min. return loss at 20 Β°C (dB) 10 to 300 MHz
30
min. return loss at 20 Β°C (dB) 600 to 900 MHz
23
min. return loss at 20Β°C (dB) 300 to 600 MHz
25
min. shielding attenuation (dB) 10 ~ 800 MHz
>95
mounting temperature
+5 Β°C to +60 Β°C
number of braiding wires
144Γ 0,12 mm
number of shieldings
3
packaging
500 m, wooden drum
PE = polyethylene dielectric
Foamed PE
PES = layer film
yes
reaction to the fire
Eca
recommended types of connectors - F pressing
*K7220
recommended types of connectors - F screwing
*K7351
shielding diameter
144Γ 0,12 mm2
shielding I. foil
1Γ Al/PES
shielding II. foil
Al/PES spiral
shielding protection
>84 %
storage temperature
-20 Β°C to +75 Β°C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
1β500 m
type of packaging - length
500 m
type of packaging - type of coil
wooden coil
UV resistant
no
warranty period
5 years
weight (kg/km)
43.5
Brand
EMOS
Supplier's product code
S5268
Product ID
U-2361520
