4-Channel thermometer -200.0°C~1372°C: Type-K; 7 types of thermocouples supported;APP and PC software;72000 groups;
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 1 pcs | Vilnius Žirmūnai Store |
| 1 pcs | Vilnius Naujamiestis Store |
 Not available | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 1 pcs | Šiauliai Store |
| Not available | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| 1 pcs | Vilnius Žirmūnai Store |
| 1 pcs | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 1 pcs | Šiauliai Store |
| Not available | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Product description

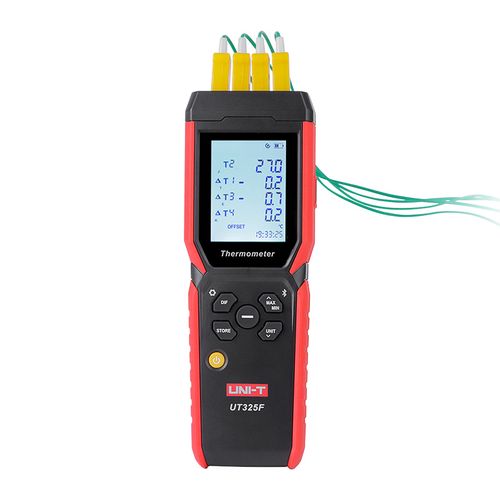

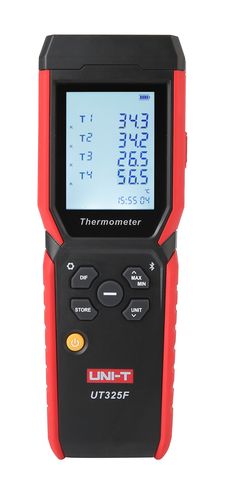

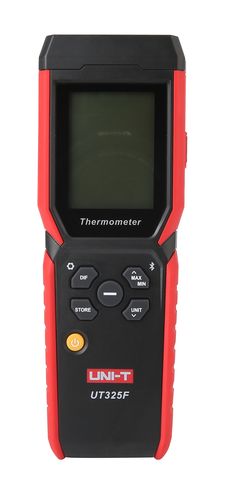

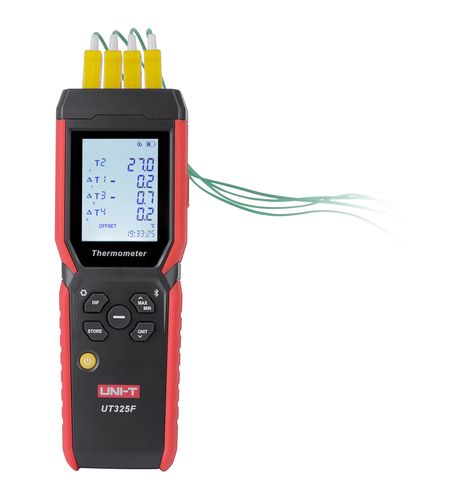

UT325F 4-Channel Thermometer is a high- accuracy digital thermometer that uses a thermocouple as the temperature probe. It widely used in electronic and mechanical device monitoring, laboratory test, hardware processing, concrete placing.
Features of UT325F 4-channel thermometer
Certifications : CE, UKCA
● 7 types of thermocouples
● MIN/MAX/AVG/HOLD

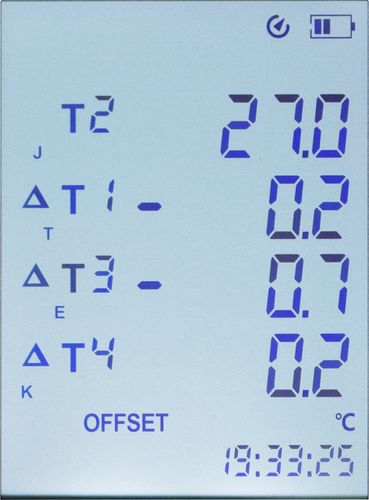

● Temperature difference

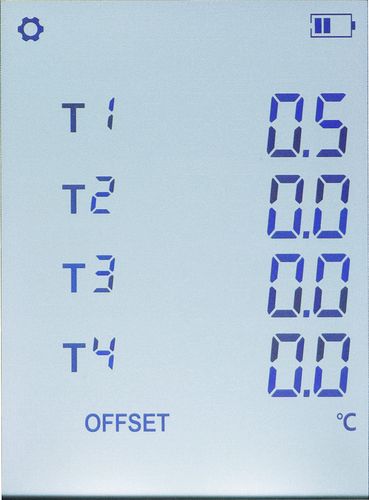

● Offset value compensation
● 72000 data storage

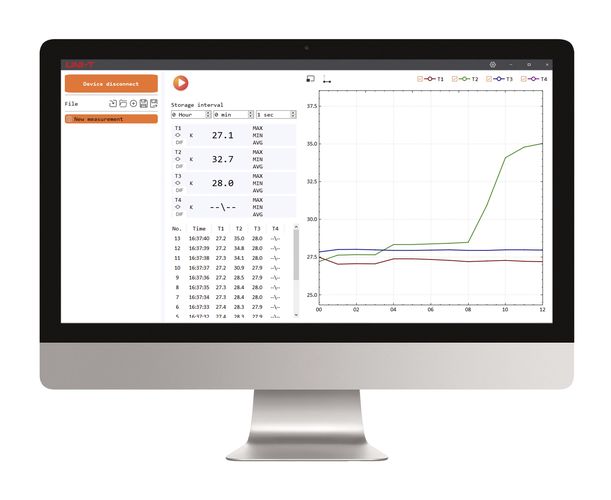

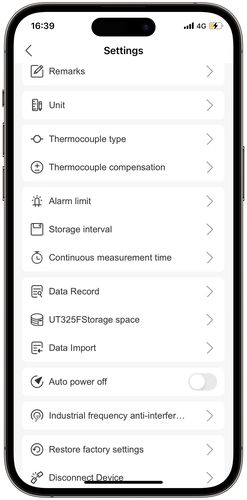

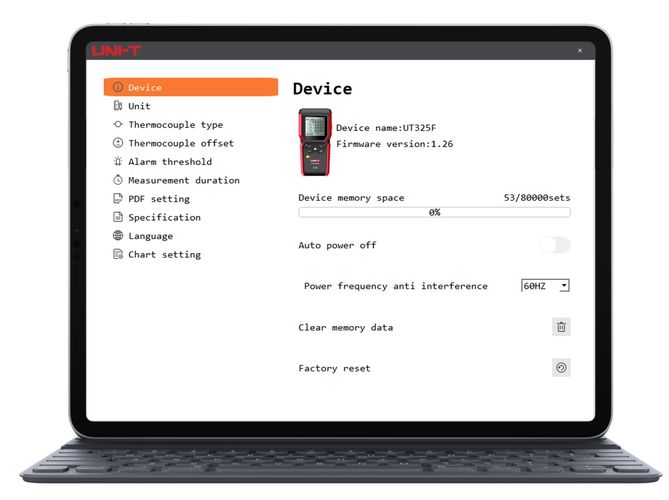

● PC software and bluetooth APP connection
Specification of UT325F 4-channel thermometer
|
Specification |
UT325F |
|
|
Thermocouple types |
Type K, J, T, E, R, S and N |
|
|
Measuring range |
Type K thermocouple |
-200.0℃~1372℃ (-328.0℉~2501℉) |
|
Type J thermocouple |
-210.0℃~1200℃(-346.0℉~2192℉) |
|
|
Type T thermocouple |
-250.0℃~400.0℃(-418.0℉~752.0℉) |
|
|
Type E thermocouple |
-150.0℃~1000℃(-238.0℉~1832℉) |
|
|
Type R thermocouple |
0℃~1767℃(32℉~3212℉) |
|
|
Type S thermocouple |
0℃~1767℃ (32℉~3212℉) |
|
|
Type N thermocouple |
-200.0℃~1300℃(-328.0℉～2372℉) |
|
|
Display resolution |
0.1℃/℉/K (<1000) |
|
|
1.0℃/℉/K (≥1000) |
||
|
Accuracy |
±(0.2%+0.5℃) |
Below -10℃: The original basis + 0.5℃; Below -200℃: The original basis + 2℃; Type T below -200℃: For reference only |
|
±(0.2%+0.9℉) |
||
|
The accuracy is applicable to the ambient temperature of 18℃ to 28℃, and it does not include the error of the thermocouple |
||
|
Repeatability accuracy |
±0.1%+0.3℃ |
|
|
Response time |
About 500ms |
|
|
Measurement functions |
Unit selection |
℃/℉/K |
|
Data hold |
√ |
|
|
Auto power off |
√ |
|
|
Measurement modes |
MIN/MAX/AVG |
|
|
Difference |
View temperature difference between any two channels |
|
|
Timing measurement |
The recording interval can be set for 1s-24h to record the measurement data periodically |
|
|
System functions |
Data recording |
72000 |
|
Backlight |
Turn on/off |
|
|
Data transmission |
Type-C USB, Bluetooth |
|
|
Battery status |
√ |
|
|
Power frequency anti-interference |
50/60Hz |
|
|
Drop proof |
1m |
|
|
Operating time |
﹥30h |
|
|
Operating temperature |
-10℃~50℃ (14℉~122℉) |
|
|
Storage temperature |
20℃~60.0℃ (-4℉~140℉) |
|
|
Operating humidity |
90%RH (non-condensing) |
|
|
Characteristic |
||
|
Standard accessories |

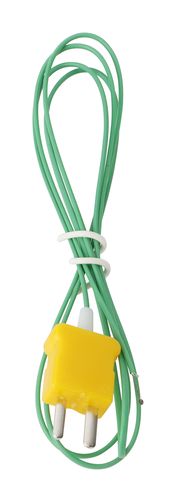

3*AAA battery, 4*thermocouples, product,user manual,safety instructions, gift box |
|
|
Power |
3*AAA alkaline zinc-manganese battery |
|
|
Product size |
178×63×38mm |
|
|
Product net weight |
||
|
Standard quantity per carton |
10pcs |
|
|
Standard carton size |
395×330×330mm |
|
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T 4-Channel Thermometer: Precise Temperature Monitoring
The UNI-T 4-Channel Thermometer (-200.0°C~1372°C) is a versatile and high-precision temperature data logger, ideal for various applications requiring accurate and reliable temperature readings. This advanced device belongs to our Temperature and Humidity Loggers category and offers unparalleled functionality for professionals and researchers alike.
Key Features and Benefits
- 4-Channel Simultaneous Measurement: Monitor temperatures from four different sources concurrently for comprehensive data acquisition.
- Wide Temperature Range: Accurately measures temperatures from -200.0°C to 1372°C, covering a broad spectrum of applications.
- Type-K Thermocouple Compatibility: Supports Type-K thermocouples, ensuring compatibility with a wide range of sensors and probes.
- 7 Thermocouple Types Supported: Offers flexibility with support for 7 different thermocouple types (specific types not listed).
- Extensive Data Storage: Stores up to 72000 data groups, providing ample capacity for long-term monitoring projects.
- User-Friendly Software: Includes both APP and PC software for easy data analysis, visualization, and report generation.
Applications
This multi-channel temperature logger is suitable for a wide range of applications, including:
- Industrial process monitoring
- Scientific research and experimentation
- Environmental monitoring
- HVAC system analysis
- Quality control and assurance
Why Choose the UNI-T 4-Channel Thermometer?
The UNI-T 4-Channel Thermometer stands out due to its combination of high accuracy, extensive data storage capacity, versatile thermocouple compatibility, and user-friendly software. Its ability to monitor multiple temperature points simultaneously makes it an invaluable tool for various industries and research settings. Choose this product for reliable, efficient, and comprehensive temperature data acquisition.
Technical Specifications
While detailed specifications are not provided here, key features include a wide temperature range, support for multiple thermocouple types, and substantial data storage capacity. For complete specifications, please refer to the product manual.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
