Cable Tester UTP , FTP, SSTP; Cable length test 500m, POE detection, Ethernet port test, coaxial, UNIT
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
 Not available | Vilnius Žirmūnai Store |
| Not available | Vilnius Naujamiestis Store |
| Not available | Kaunas Store |
| Not available | Klaipėda Store |
| Not available | Šiauliai Store |
| Not available | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Product description

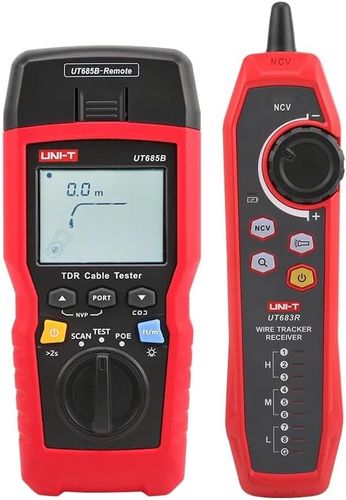

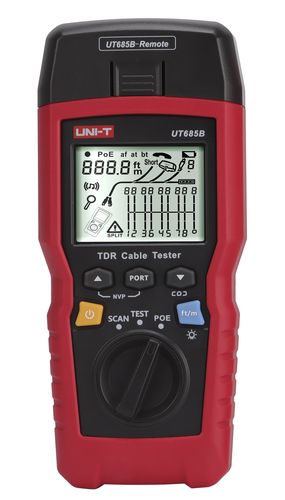

UT685B KIT TDR Cable Tester
UT685B KIT can test various types of cables (including twisted pair cable, coaxial cable, and POE network cable): you can find the cable, detect the cable length, and line sequence, and confirm whether it is POE and POE standards. Plus, it integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without needing awkward adapters.
Effectively reduce the operator’s ineffective testing and improve work efficiency, which makes high-quality installations more efficient and easier
Features of UT685B KIT TDR Cable Tester
Certifications: CE, UKCA, RoHS
● 2.8 inch backlit LCD display
● Graphical interface
● Cable length test
● Tests RJ11, RJ45 and coaxial cable types
● Identify POE standards
● Digital hunt
● Range 500m
● Resolution 0.33m
● 70V DC input protection
● TDR technology: no blind area testing
Specifications of UT685B KIT TDR Cable Tester
|
Specifications |
UT685B KIT |
|
Tested cable type |
Twisted pair cable: |
|
Coaxial cable: 50Ω, 75Ω, 93Ω |
|
|
Cable length test |
Range: 500 m |
|
Resolution: 0.33 m |
|
|
Accuracy: ± 4% or 0.6 m |
|
|
POE detection |
POE power detection |
|
POE standard: 802.3AF |
|
|
POE standard: 802.3AT |
|
|
Ethernet port test |
√ |
|
Cable location |
√ |
|
Port blinks |
√ |
|
Input protection |
70VDC |
|
Screen |
2.8″ LCD |
|
Auto power off |
Around 10 minutes |
|
General Characteristics |
|
|

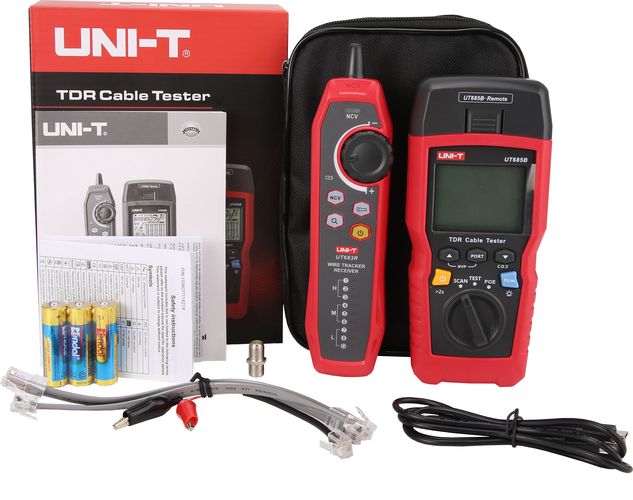

Standard accessories |
RJ45 adapting cable: 1 pc; |
|
Power |
AAA alkaline batteries x4 |
|
Product Dimension |
180mm×84mm×37.8mm |
Specifications
Experimental product description generated by artificial intelligence
UNI-T Cable Tester for UTP, FTP, and SSTP Cables
This UNI-T Cable Tester is a professional-grade tool for testing various types of cables, making it an essential asset for network technicians and installers.
Key Features and Functions
- Comprehensive Cable Testing: Tests UTP, FTP, and SSTP cables, ensuring compatibility with a wide range of network setups.
- Long Cable Length Testing: Accurately measures cable length up to 500 meters.
- POE Detection: Quickly and reliably detects Power over Ethernet (POE) functionality.
- Ethernet Port Testing: Thoroughly tests Ethernet ports for connectivity and functionality.
- Coaxial Cable Testing: Supports testing of coaxial cables, expanding its versatility.
- UNIT: Includes a main unit for easy operation and data interpretation.
Applications
This versatile cable tester is ideal for a variety of applications, including:
- Network installation and maintenance
- Troubleshooting network connectivity issues
- Verifying cable integrity
- Testing POE systems
- General cable testing in various settings
Why Choose This UNI-T Cable Tester?
This UNI-T Cable Tester offers a comprehensive solution for all your cable testing needs. Its robust design, accurate measurements, and wide range of supported cable types make it a valuable tool for professionals and serious DIY enthusiasts. The ability to test cable length, detect POE, and test Ethernet and coaxial cables in one device saves time and increases efficiency.
Synonyms
This product may also be referred to as a: Network Cable Tester, LAN Cable Tester, Wire Tester, Cable Fault Finder, or Cable Identifier.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
