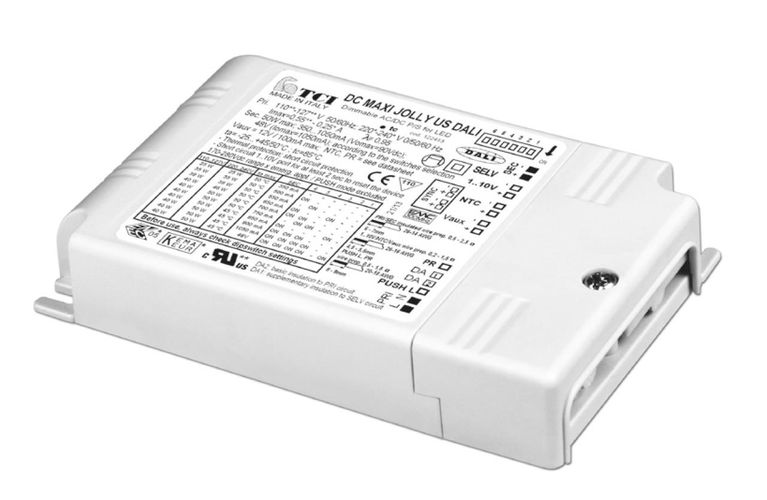

DC MAXI JOLLY SV DALI 40 - LED Driver, TCI
Product Code: 125506
Delivery terms
2024-12-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
Useful information
Supplier parameters
NomNr
125506
Approvals
CE; EAC ; ENEC; KEMAKEUR; RCM; UKCA
Case
IP 20 (Independent Use); Square; ZHAGA AM3
Constant current
1000 mA; 1050 mA; 1100 mA; 1150 mA; 1200 mA; 350 mA; 400 mA; 450 mA; 500 mA; 550 mA; 600 mA; 650 mA; 700 mA; 750 mA; 800 mA; 850 mA; 900 mA; 950 mA
Cut-out hole diameter
84 mm; 88 mm; 90 mm
Depth
79
Dimming
1-10V - 0-10V; DALI-1; PUSH (on the Mains); SYNC/PWM INPUT
Height
22
Others
12 V AUX. output; 4/5 kV DM/CM SURGE Input Protection; ACTIVE PFC (pf>0.9); DIMMING: AM + PWM (MIXED) IEEE1789-2015; DIMMING: PWM; EXTERNAL NTC INPUT; RIPPLE FREE; SELV <60V; WIDE RANGE INPUT VOLTAGE
Width
124
Brand
TCI
Supplier's product code
125506
Product ID
U-3105324
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
