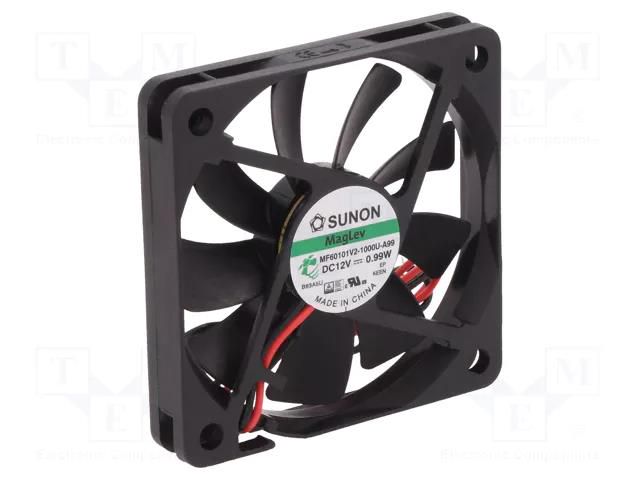

Fan: DC; axial; 12VDC; 60x60x10mm; 24.17m3/h; 25dBA; Vapo; 3500rpm SUNON
Product Code: MF60101V2-A99-A
Delivery terms
2024-11-28 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 4656 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
Fan: DC; axial; 12VDC; 60x60x10mm; 24.17m3/h; 25dBA; Vapo; 3500rpm
Useful information
Supplier parameters
Product code
MF60101V2-A99-A
Brand
SUNON
Supplier's product code
MF60101V2-A99-A
Product ID
U-256182
Additional functions
Autorestart
Cable length
0.29m
Current and power consumption tolerance
±15%
Current rating
75mA
Enclosure material
thermoplastic
Fan dimensions
60x60x10mm
Fan efficiency
24.17m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
25dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.9W
Rotational rate/speed
3500rpm
Static pressure
2.54mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
