Extralink SC/APC-LC/UPC | Patchcord | Single Mode, Duplex, G652D, 3mm, 5m, EXTRALINK
Product Code: EX.9243
Brand
More similar products
Delivery terms
2024-07-17 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Supplier product description

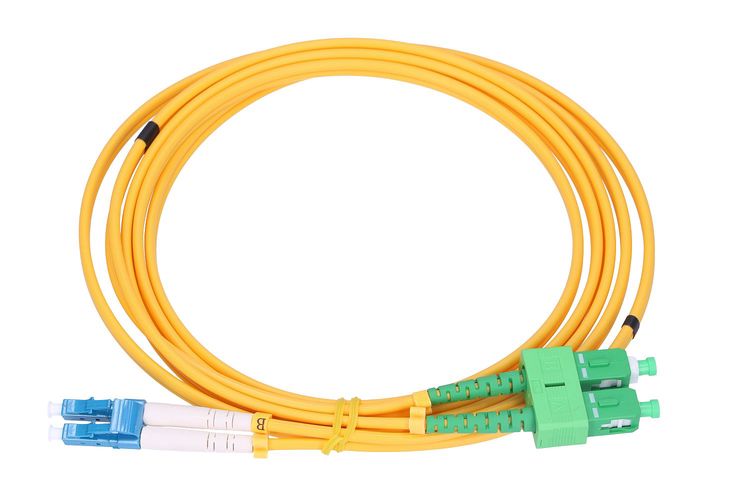

Patchcord SC/APC-LC/UPC SM G.652D DUPLEX 5M
Patchcord (the connection cable) single-mode with a length of 5 meters, a cable diameter of 3 mm, terminated with SC/APC-LC/UPC connectors, is used for the network connection of optical equipment such as switches or converters. Patchcords are also widely used in FTTH networks to connect OLT and ONU/ONT type devices.
Patchcord features
Patchcord features
- Low attenuation
- Operation over a wide temperature range
- Repeatability of measurements
- Repeatability of parameters
Purpose
Purpose
- FTTH networks
- LAN, WAN
- WDM systems
| Cable category | Single-Mode |
| Fiber standard | G.652.D |
| Length | 5m |
| Types of connectors | SC/APC-LC/UPC |
| Cable diameter | 3,0mm |
| Cable diameter | 3 |
| Cable length | 5 |
| Cable type | FTTH |
| Certification | CE, RoHs |
| Connector 1 | SC/APC |
| Connector 1 gender | Male |
| Connector 2 | LC/UPC |
| Connector 2 gender | Male |
| Connector material | Ceramic |
| Fiber mode structure | Single-mode |
| Fiber optic patchcord type | Duplex |
| Fibre optic type | G.652D |
| Full duplex | Yes |
| Jacket material | Polyvinyl chloride (PVC) |
| Package type | Bag |
| Plug and Play | Yes |
| Product colour | Yellow |
| Quantity per pack | 1 |
| Test protocol included | Yes |
Supplier parameters
Product code
EX.9243
Brand
EXTRALINK
Supplier's product code
EX.9243
Product ID
U-3955287
