Supplier product description

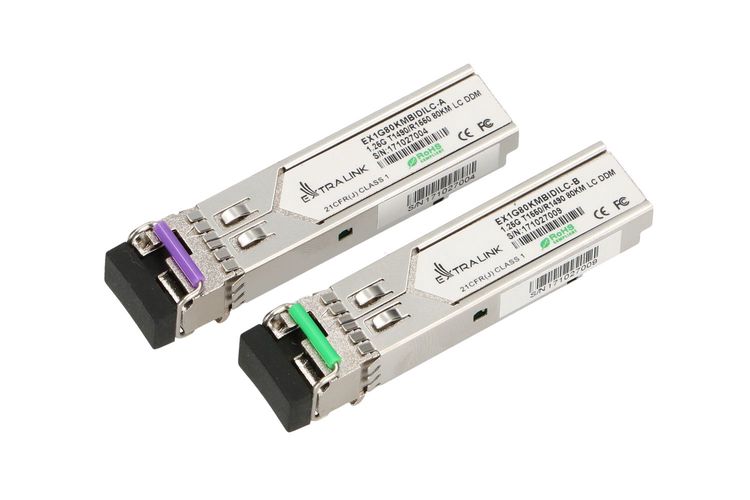

Pair of single-mode SFP 1.25G WDM 1490/1550NM SM 80KM LC DDM modules
The set of Extralink SFP 1.25G WDM modules is designed for data transmission via single-mode optical fibers over distances to 80 km. The single-mode SFP consists of five sections, i.e. DFB laser transmitter, LD controller, PIN photodiode, limiting amplifier and MCU control unit. The SFP optical modules are MSA (Small Form Factor Pluggable Multi-Sourcing Agreement) compliant. They support 1.25 Gb/s data transmission. Connection of fiber optic SFP modules can be done without interruption of the device.
Special features
Special features
- Supports 1.25 Gb/s data transfer rate
- DFB Tx1550 nm DFB laser transmitter and PIN photodetector
- Single 3.3 V supply
- SFP optical module can be connected without interrupting operation
- Simplex LC connector interface
- Metal casing to reduce electromagnetic interference
- Up to 80 km on 9/125μm SMF
- Compliant with SFP MSA and digital diagnostics SFF-8472
- Safety Certificate for a Class 1 laser
- Compliance with RoHS Directive
| Output connector | LC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | Over 20km |
| Easy to install | Yes |
| Ethernet LAN | No |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Fiber optic connector | LC |
| Fiber type | SM (Single-Mode) |
| Form factor | CFP4 |
| Hot-swap | Yes |
| Housing material | Zinc steel |
| Input voltage | 3.3 |
| Interface type | SFP |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 80000 |
| Plug and Play | Yes |
| Product colour | Metallic |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1490/1550 nm |
