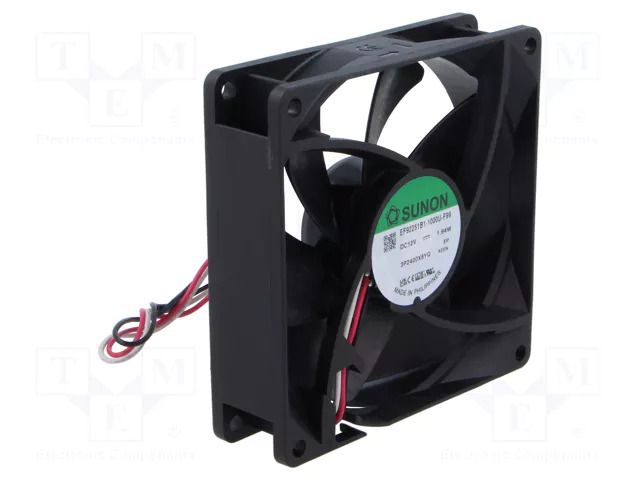

Fan: DC; axial; 12VDC; 92x92x25mm; 40.7dBA; ball; Out: R type SUNON
Product Code: EF92251B1-F99
Delivery terms
2024-10-08 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 804 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
Fan: DC; axial; 12VDC; 92x92x25mm; 40.7dBA; ball; Out: R type
Supplier parameters
Product code
EF92251B1-F99
Brand
SUNON
Supplier's product code
EF92251B1-F99
Product ID
U-3916346
Additional functions
autorestart
Cable length
0.305m
Current and power consumption tolerance
±15%
Current rating
0.125A
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
40.7dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V
Power consumption
1.5W
Rotational rate/speed
3000rpm
Signal output
R type
Supply voltage
12V DC
Type of fan
DC
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
