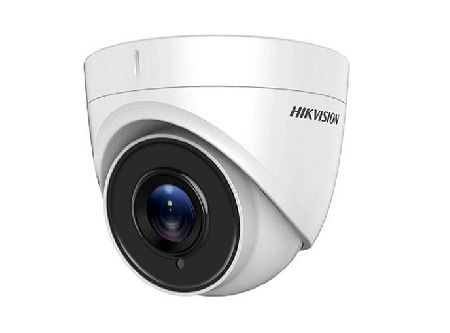

Hikvision dome DS-2CE78K0T-LFS F2.8
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Supplier product description
- High quality imaging with 3K, 2960 × 1665 resolution
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- Water and dust resistant (IP67)
- High quality audio with audio over coaxial cable, built-in mic
- Smart-Hybrid light, optimize your security with flexible lighting options
- Camera
- Image Sensor 3K CMOS
- Max. Resolution2960 (H) × 1665 (V)
- Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
- Lens MountM12
- Illuminator
- Supplement Light TypeWhite Light;IR
- Supplement Light Range
IR : Up to 40 m
White Light : Up to 20 m
- Image
- Image SettingsBrightness, Sharpness, Smart IR
- Frame Rate
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementDWDR/BLC/HLC/Global
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- Built-in MicrophoneYes
- General
- Material
Body：Metal
Enclosure： Plastic
- Dimension97.9 mm × Ø110 mm (3.85" × Ø4.33")
- WeightApprox. 340 g (0.75 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 3.3 W
- Approval
- ProtectionIP67
