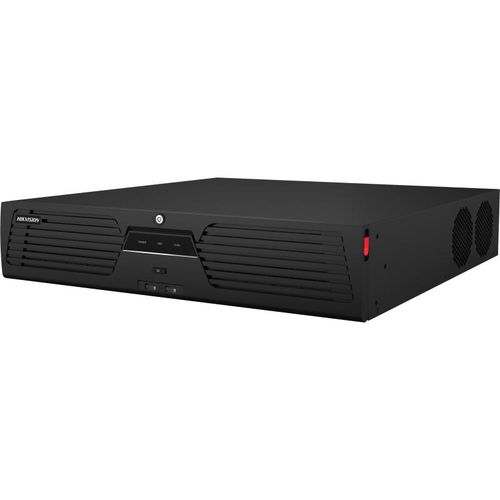

Hikvision NVR DS-9632NI-M8
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Supplier product description
- 32-ch NVR
- 8 SATA interface (up to 16TB capacity for each HDD)
- Incoming bandwidth up to 320Mbps
- Up to 12 Megapixels resolution recording
- Audio I/O
- Alarm I/O
- 2 HDMI/VGA outputs
- Video and Audio
- IP Video Input32-ch
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- HDMI 2 Output
4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- VGA 1 Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA 2 Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback16-ch
- Decoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Network
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
- Auxiliary Interface
- Serial Interface1 RS-485 (full-duplex), 1 RS-232
- SATA8 SATA interfaces supporting hot-plug
- eSATA1 eSATA interface
- CapacityUp to 16 TB capacity for each disk
- Alarm In/Out16/9
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
- Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 50 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Chassis2U chassis
- Dimension (W × D × H)445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")
- Weight≤ 10 kg (without HDD, 22 lb.)
- Certification
- Obtained CertificationCE, FCC
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
