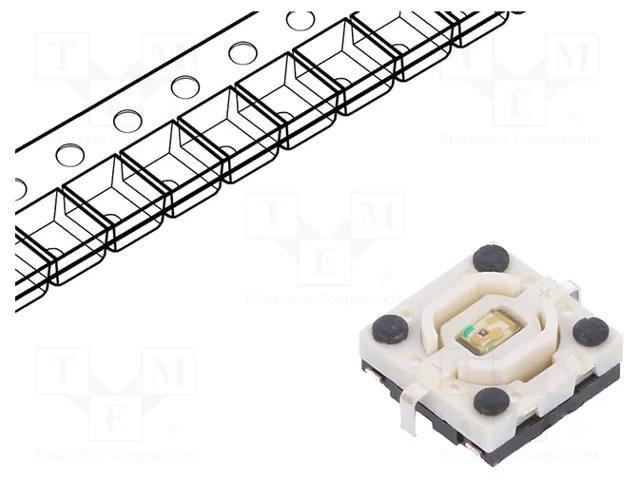

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; LED; green DIPTRONICS
Product Code: ML4L12GQR
Brand
More similar products
Delivery terms
2024-12-05 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1995 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; LED; green DIPTRONICS
Useful information
Specifications
Supplier product description
Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; LED; green
Useful information
Supplier parameters
Product code
ML4L12GQR
Product ID
U-260982
Backlight colour
green
Body dimensions
4.9x4.9mm
Button height
2mm
Button shape
square
Contacts configuration
SPST-NO
DC contacts rating @R
50mA / 12V DC
Illumination
LED
Leads
straight
Manufacturer
DIPTRONICS
Manufacturer series
ML4
Max. contact resistance
:100mΩ
Mechanical durability
1000000 cycles
Min. insulation resistance
0.1GΩ
Mounting
SMT
Number of positions
2
Operating Force
1.56N
Operating temperature
-40...85°C
Stable positions number
1
Switching method
OFF-(ON)
Terminal pitch
3.7mm
Type of switch
microswitch TACT
Brand
DIPTRONICS
Supplier's product code
ML4L12GQR
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
