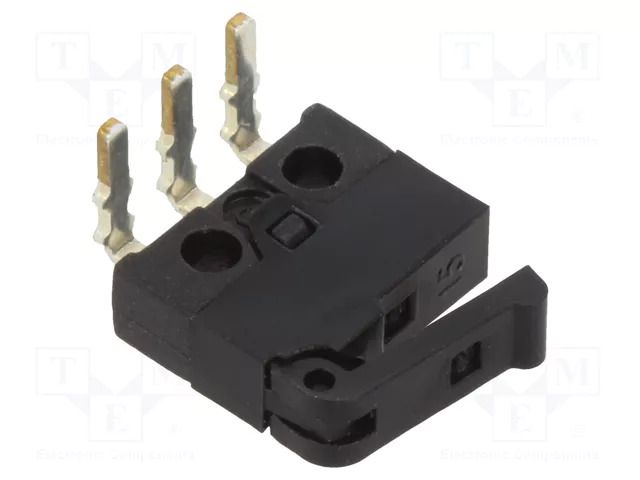

Microswitch SNAP ACTION; 0.5A/30VDC; SPDT; Rcont max: 100mΩ; PCB KNITTER-SWITCH
Product Code: DM-SSM01DL2
Brand
More similar products
Delivery terms
2024-11-28 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 286 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
Brand
Microswitch SNAP ACTION; 0.5A/30VDC; SPDT; Rcont max: 100mΩ; PCB KNITTER-SWITCH
Useful information
Specifications
Supplier product description
Microswitch SNAP ACTION; 0.5A/30VDC; SPDT; Rcont max: 100mΩ; PCB
Useful information
Supplier parameters
Brand
KNITTER-SWITCH
Supplier's product code
DM-SSM01DL2
Product ID
U-2358495
Body colour
black
Body dimensions
8.2x6x2.7mm
Body material
PBT
Button material
PBT
Contact plating
silver plated
Contacts configuration
SPDT
DC contacts rating @R
0.5A / 30V DC
Illumination
none
Leads
flat pin
Manufacturer
KNITTER-SWITCH
Manufacturer series
DM-SSM
Max. contact resistance
:100mΩ
Mechanical durability
300000 cycles
Mounting
PCB
Number of positions
2
Operating Force
0.5N
Operating temperature
-20...70°C
Stable positions number
1
Switching method
ON-(OFF)
Terminal pitch
2.5mm
Type of switch
microswitch SNAP ACTION
Product code
DM-SSM01DL2
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
Sorry, we no longer have this product.
