Supplier product description

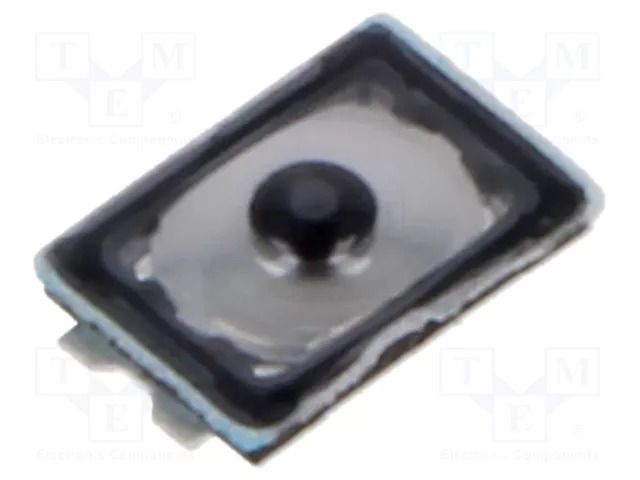

Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 2.35N; round
Useful information
Supplier parameters
Product code
TL3780AF240QG
Actuator colour
black
Body dimensions
3.5x2x0.38mm
Button height
0.22mm
Button shape
round
Contacts configuration
SPST
DC contacts rating @R
50mA / 12V DC
Illumination
none
Key stroke
0.13mm
Leads
soldering pads
Manufacturer
E-SWITCH
Max. contact resistance
:500mΩ
Mechanical durability
500000 cycles
Mounting
SMD
Number of positions
2
Operating Force
2.35N
Operating temperature
-40...85°C
Stable positions number
1
Switching method
OFF-(ON)
Terminal pitch
3.25mm
Type of switch
microswitch TACT
Brand
E-SWITCH
Supplier's product code
TL3780AF240QG
Product ID
U-2383005
