Product description
Brand

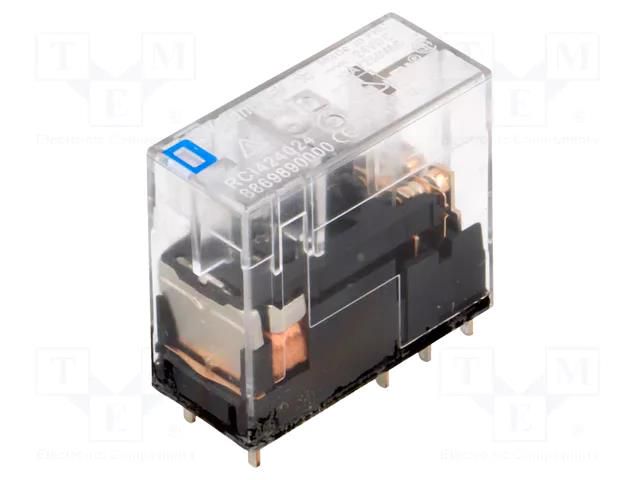

Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 8A; RCI WEIDMÜLLER
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 8A; RCI
Supplier parameters
Product code
RCI424024
Supplier's product code
RCI424024
Product ID
U-307516
AC contacts rating @R
8A / 240V AC
Body dimensions
29x13.7x26.7mm
Coil current
16.7mA
Coil power consumption
400mW
Contact current max.
8A
Contact resistance
50mΩ
Contacts configuration
DPDT
DC contacts rating @R
8A / 24V DC
Manufacturer
WEIDMÜLLER
Mounting
socket
Operate time
10ms
Operating temperature
-40...70°C
Rated coil voltage
24V DC
Relay series
RCI
Relay variant
miniature
Related items
SRC-I 2CO
Release time
6ms
Switched voltage
max. 220V DC
Switching capacity
2kVA
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
WEIDMULLER
