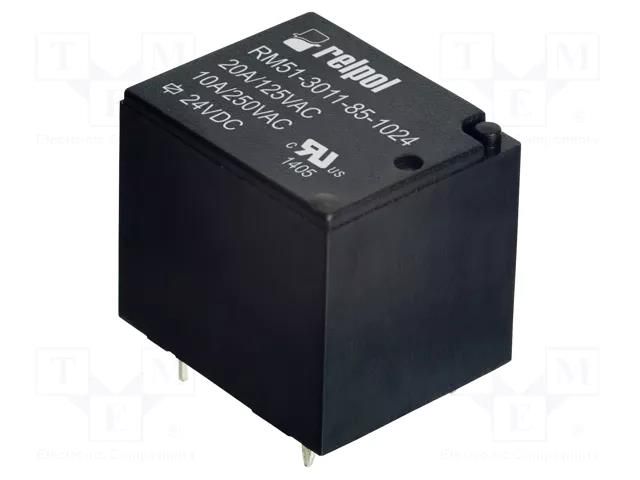

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A; 10A/250VAC; PCB RELPOL
Product Code: RM513011851024
Delivery terms
2024-07-11 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 181 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A; 10A/250VAC; PCB
Useful information
Supplier parameters
NomNr
RM513011851024
Supplier's product code
RM513011851024
Product ID
U-312037
AC contacts rating @R
10A / 250V AC
Body dimensions
19.5x16x17.1mm
Coil power consumption
360mW
Coil resistance
1.6kΩ
Coil voltage max.
31.2V DC
Coil voltage min.
18V DC
Contact current max.
10A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
10A / 30V DC
IP rating
IP64
Manufacturer
RELPOL
Mounting
PCB
OEM number
2614701
Operate time
15ms
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay series
RM51
Relay variant
miniature
Release time
10ms
Switched voltage
max. 30V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
RELPOL
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
