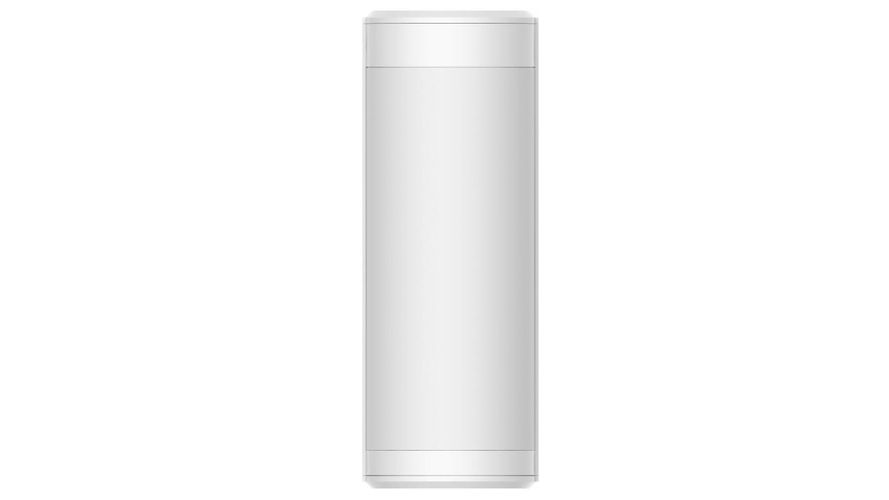

Outdoor 2PIR + microwave Ellipse Detector Hikvision ALARM DS-PDTT15AM-LM
Product Code: DSPDTT15AMLM
Delivery terms
2024-12-06 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
- 90°@180° adjustable coverage
- Active IR anti-masking
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper-proof wiring
- Detection Performance
- Detection MethodPassive Infrared;Microwave
- Detection Range15m
- Detection Angle90° @ 180° adjustable
- Detection Zones92
- Detectable Speed0.3～2m/s
- SensitivityAuto;Low
- White Light Filter10000lux
- Pet Immunity40Kg
- Microwave Frequency24GHz(24.15～24.25GHz)
- Digital Temperature CompensationSupport
- Anti-maskingSupport
- Adaptable Coverage
Support
Pattern mask included
- Feature
- Digital ProcessingTri-Signal Logic
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Anti-Sway AnalyticsSupport
- Interface
- Alarm OutputNormally Closed
- LED IndicatorGreen(Top PIR), Red(Microwave), Orange(Bottom PIR)Green+Orange(Mask), Blue(Alarm)
- Transmission
- Transmission MethodWired
- Electrical Characteristics
- Power Consumption
30mA （Standard）
220mA Max （With lighting on）
- Power Supply9 to 16 VDC
- Typical Voltage12 VDC
- General
- Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity10% to 90%
- IP RateIP65
- Dimension(WxHxD)75mm × 202mm × 73mm
- 350g
- Mounting Height0.8 to 1.2m
- Mounting MethodWall
- Application ScenarioOutdoor
Supplier parameters
Product code
DSPDTT15AMLM
Category
Outdoor PIR dete
Brand
Hikvision
Supplier's product code
DSPDTT15AMLM
Product ID
U-2564981
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
