Supplier product description

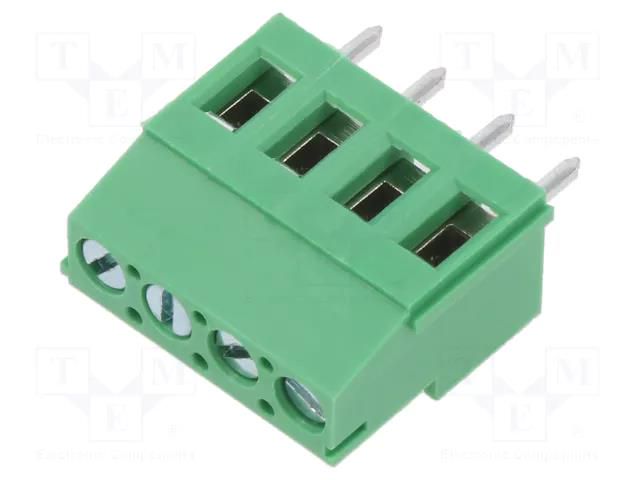

PCB terminal block; angled 90°; 5.08mm; ways: 4; on PCBs; 2.5mm2
Supplier parameters
NomNr
EB147A-04-D
Brand
ADAM TECH
Supplier's product code
EB147A-04-D
Product ID
U-3104050
Body material
thermoplastic
Colour
green
Conform to the norm
UL
Connector
terminal
Connector pinout layout
1x4
Connectors features
assembling possibility
Contact material
brass
Contact plating
tinned
Contacts pitch
5.08mm
Current rating
16A
Depth
10.5mm
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Height
18mm
Length
20.32mm
Manufacturer
ADAM TECH
Mechanical mounting
on PCBs
Number of ways
4
Operating temperature
-40...105°C
Rated voltage
300V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
2.5mm<sup>2</sup>
Wire size
26AWG...12AWG
