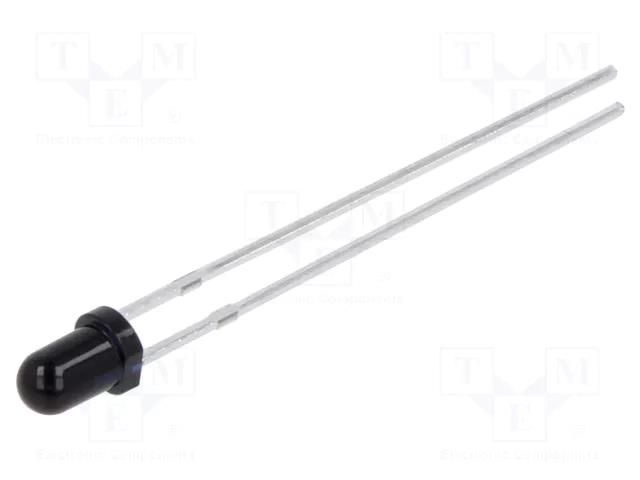

Phototransistor; 3mm; λp max: 950nm; 60V; 30°; Lens: black; -40÷85°C BRIGHTEK (EUROPE)
Product Code: N0P47L84
More similar products
Delivery terms
2024-07-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 4987 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Product description
Phototransistor; 3mm; λp max: 950nm; 60V; 30°; Lens: black; -40÷85°C BRIGHTEK (EUROPE)
Useful information
Specifications
SKU
U-3067954
Product code
N0P47L84
Supplier product description
Phototransistor; 3mm; λp max: 950nm; 60V; 30°; Lens: black; -40÷85°C
Useful information
Supplier parameters
Supplier's product code
N0P47L84
Product ID
U-3067954
Collector current
0.5mA
Collector-emitter voltage
60V
Dark current
0.1µA
Front
convex
LED diameter
3mm
LED lens
black
Manufacturer
BRIGHTEK (EUROPE)
Maximum power
0.1W
Mounting
THT
Operating temperature
-40...85°C
Rise time
10µs
Type of photoelement
phototransistor
Viewing angle
30°
Wavelength of peak sensitivity
950nm
Product code
N0P47L84
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
