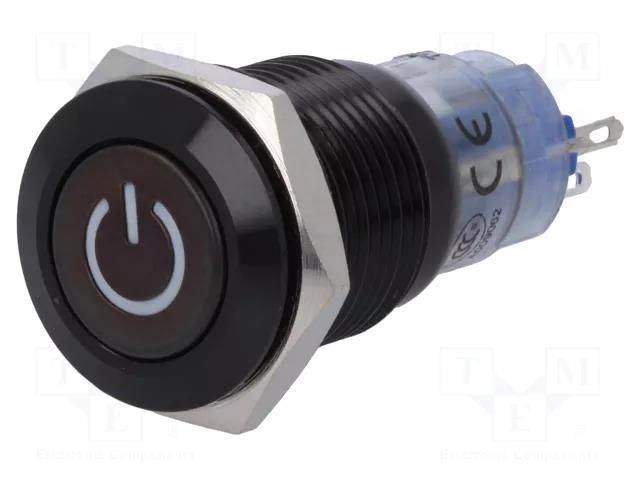

Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40 ONPOW
Product Code: V16-11DT-12B-A
Brand
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Supplier product description
Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40
Useful information
Supplier parameters
Product code
V16-11DT-12B-A
Brand
ONPOW
AC contacts rating @R
0.5A / 220V AC
Backlight colour
blue
Body colour
black
Body material
aluminium
Button marking
POWER
Button shape
flat
Contact material
silver alloy
Contacts configuration
SPDT
DC contacts rating @R
1A / 24V DC
Electrical life
50000 cycles
Illumination
LED
Illumination voltage
12V
IP rating
IP40
Leads
for soldering
Manufacturer
ONPOW
Max. contact resistance
:50mΩ
Mechanical durability
200000 cycles
Mounting hole diameter
Ø16mm
Number of positions
2
Operating Force
4N
Operating temperature
-20...55°C
Related items
M20-11D
Ring shape
rounded
Stable positions number
1
Switching method
ON-(ON)
Test voltage
1.5kV
Type of switch
vandal resistant
Supplier's product code
V16-11DT-12B-A
Product ID
U-373100
