Supplier product description

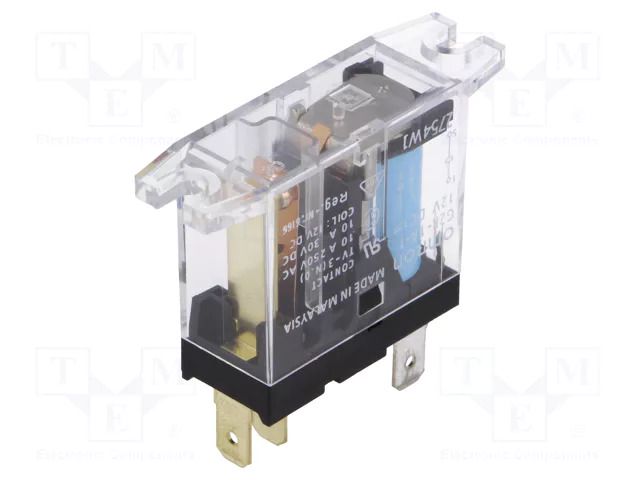

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A
Useful information
Supplier parameters
Brand
Omron
Supplier's product code
G2R-1A-T-12DC
Product ID
U-193553
AC contacts rating @R
10A / 250V AC
Body dimensions
29x13x25.5mm
Coil current
43.6mA
Coil resistance
275Ω
Contact current max.
10A
Contact resistance
30mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 30V DC
Enclosure description
standard seal
Leads
connectors 4,75x0,5mm
Manufacturer
OMRON Electronic Components
Mounting
screw type
Operate time
15ms
Operating temperature
-40...70°C
Rated coil voltage
12V DC
Relay series
G2R
Relay variant
miniature
Release time
5ms
Switched voltage
max. 125V DC
Terminal pitch
5.2mm
Type of relay
electromagnetic
Product code
G2R-1A-T-12DC
