Product description

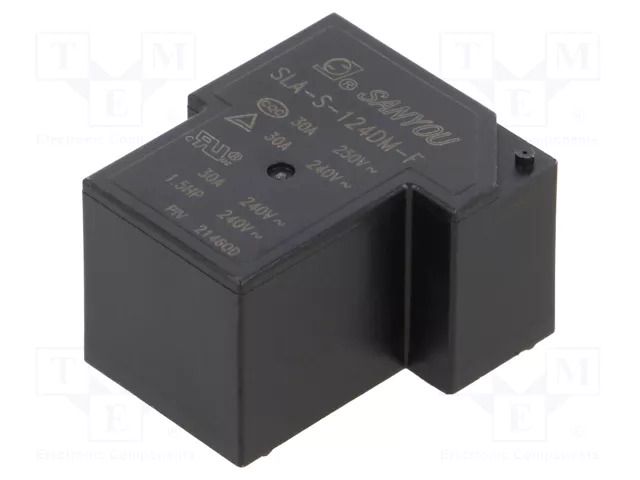

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; SLA; THT; 900mW SANYOU
Useful information
Specifications
SKU
U-2881617
Product code
SLA-S-124DM-F
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; SLA; THT; 900mW
Useful information
Supplier parameters
Supplier's product code
SLA-S-124DM-F
Product ID
U-2881617
AC contacts rating @R
30A / 250V AC
Body dimensions
31.8x27.4x19.8mm
Coil power consumption
0.9W
Coil resistance
640Ω
Contact current max.
30A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
Manufacturer
SANYOU
Mounting
THT
Operating temperature
-40...85°C
Rated coil voltage
24V DC
Relay series
SLA
Switched voltage
max. 250V AC
Type of relay
electromagnetic
Product code
SLA-S-124DM-F
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
