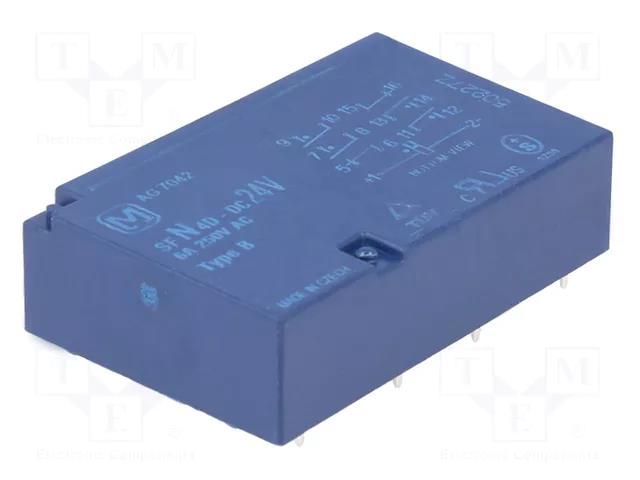

Relay: electromagnetic; SPST-NO x4 + SPST-NC x2; Ucoil: 24VDC; 6A PANASONIC
Product Code: SFN4D-DC24V
Brand
More similar products
Delivery terms
2024-09-12 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
Relay: electromagnetic; SPST-NO x4 + SPST-NC x2; Ucoil: 24VDC; 6A
Useful information
Supplier parameters
NomNr
SFN4D-DC24V
Brand
PANASONIC
Supplier's product code
SFN4D-DC24V
Product ID
U-322945
AC contacts rating @R
6A / 250V AC
Body dimensions
53.3x33x14.5mm
Coil power consumption
420mW
Coil resistance
1477Ω
Contact current max.
6A
Contact material
AgSnO<sub>2</sub>
Contact plating
gold-plated
Contact resistance
30mΩ
Contacts configuration
SPST-NO x4 + SPST-NC x2
DC contacts rating @R
6A / 24V DC
Manufacturer
PANASONIC
Mounting
PCB
Operating temperature
-25...90°C
Rated coil voltage
24V DC
Relay series
SFN4D
Relay variant
safety
Switched voltage
max. 500V DC
Type of relay
electromagnetic
