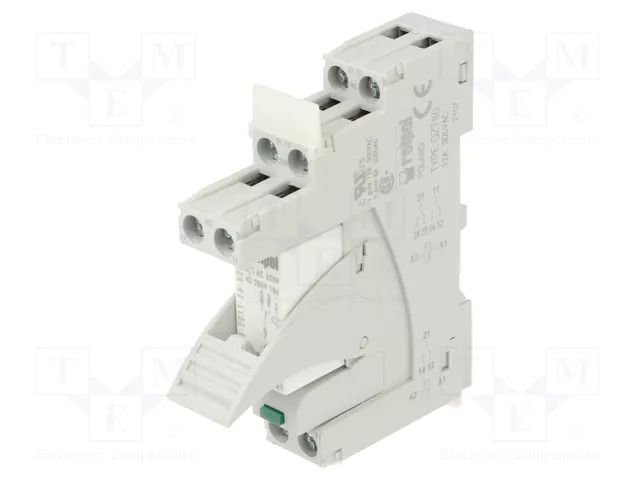

Relay: interface; SPDT; Ucoil: 230VAC; 16A; 16A/250VAC; 16A/24VDC RELPOL
Product Code: PI85230ACM93TS2011
Delivery terms
2024-11-21 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 6 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Supplier product description
Relay: interface; SPDT; Ucoil: 230VAC; 16A; 16A/250VAC; 16A/24VDC
Useful information
Supplier parameters
Product code
PI85230ACM93TS2011
Brand
RELPOL
Supplier's product code
PI85230ACM93TS2011
Product ID
U-3958727
AC contacts rating @R
16A / 250V AC
Body dimensions
80x67x15.6mm
Contact material
AgNi
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
16A / 24V DC
Leads
screw terminals
Manufacturer
RELPOL
Max. operating current
16A
Mounting
on panel
Operate time
15ms
Rated coil voltage
230V AC
Relay series
PI85
Relay variant
Relay set
Release time
8ms
Switched voltage
max. 300V DC
Type of relay
interface
Unit price
No
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
