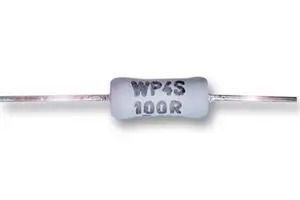

RES, 5R6, 5%, 4W, AXIAL, WIREWOUND
Product Code: WP4S-5R6JA2
Brand
More similar products
Delivery terms
2024-07-24 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 648 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Specifications
Supplier product description
RES, 5R6, 5%, 4W, AXIAL, WIREWOUND; Resistance:5.6ohm; Product Range:WP-S Series; Power Rating:4W; Resistance Tolerance:┬▒ 5%; Resistor Case Style:Axial Leaded; Voltage Rating:100V; Resistor Element Material:Wirewound; Temperature Coefficient:┬▒ 200ppm/┬░C; Automotive Qualification Standard:-; SVHC:No SVHC (15-Jan-2019); Body Diameter:5.6mm; Body Length:13mm; Element Limiting Voltage:100V; Lead Diameter:0.8mm; Lead Length:22.75mm; No. of Pins:2Pins; Operating Temperature Max:155┬░C; Operating Temperature Min:-55┬░C; Operating Temperature Range:-55┬░C to +155┬░C; Resistor Mounting:Through Hole; Temperature Coeff. +:200ppm/┬░C; Temperature Coeff. -:200ppm/┬░C; Tolerance +:5%; Tolerance -:5%
Useful information
Supplier parameters
Product code
WP4S-5R6JA2
Brand
TT electronics
Supplier's product code
1219262
Product ID
U-610624
