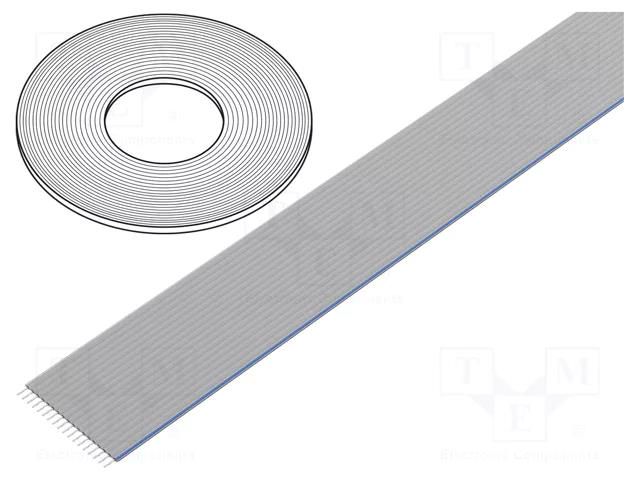

Wire: ribbon; 0.635mm; solid; Cu; unshielded; LSZH; grey; 30.5m 3M
Product Code: HF447-100-14
Delivery terms
2024-07-11 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 10 roll | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Supplier product description
Wire: ribbon; 0.635mm; solid; Cu; unshielded; LSZH; grey; 30.5m
Useful information
Supplier parameters
Product code
HF447-100-14
A dimension
8.89mm
B dimension
8.26mm
Cable structure
14x30AWG
Conform to the norm
UL 2885
Core diameter
30AWG
Core structure
solid
Insulation colour
grey
Kind of core
Cu
Kind of material
halogen free
Manufacturer
3M
Number of cores
14
Operating temperature
-40...90°C
Package contents
30.5m
Rated voltage
50V
Ribbon cable pitch
0.635mm
Shield structure
unshielded
Type of wire
ribbon
Wire insulation material
LSZH
Brand
3M
Supplier's product code
HF447-100-14
Product ID
U-2312416
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
