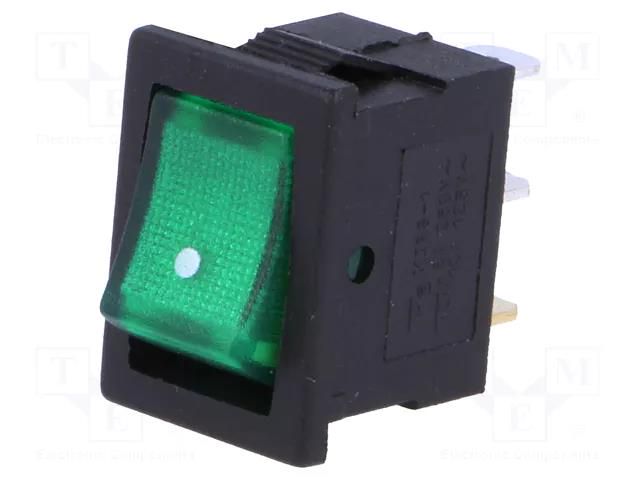

ROCKER; SPST; Pos: 2; ON-OFF; 3A/250VAC; green; neon lamp; 35mΩ
Product Code: RSSM101A2C2GN
More similar products
Delivery terms
2024-10-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 108 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
€2.39
Product description
ROCKER; SPST; Pos: 2; ON-OFF; 3A/250VAC; green; neon lamp; 35mΩ
Useful information
Specifications
SKU
U-314351
Product code
RSSM101A2C2GN
Supplier product description
ROCKER; SPST; Pos: 2; ON-OFF; 3A/250VAC; green; neon lamp; 35mΩ
Useful information
Supplier parameters
Product code
RSSM101A2C2GN
AC contacts rating @R
3A / 250V AC
Backlight colour
green
Body colour
black
Body dimensions
18.8x12.9x14.4mm
Button marking
•
Contacts configuration
SPST
Electrical life
10000 cycles
Height above panel
5.8mm
Illumination
neon lamp
Key button colour
green
Leads
connectors 4,8x0,8mm
Max. contact resistance
:35mΩ
Mounting hole diameter
19.2x13mm
Number of positions
2
Operating temperature
-30...80°C
Related items
RSC07
Supplier's product code
RSSM101A2C2GN
Product ID
U-314351
Shape
rectangular
Stable positions number
2
Switching method
ON-OFF
Type of switch
ROCKER
Unit price
No
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
