Supplier product description

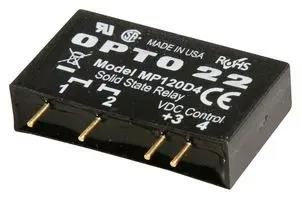

SSR, 4A, 120VAC; Contact Configuration:-; Load Current:4A; Operating Voltage Max:140VAC; Relay Mounting:PCB; Relay Terminals:Through Hole; Switching Mode:Zero Crossing; Operating Voltage Min:12VAC; Control Voltage Min:3VDC; Control Voltage Max:24VDC; Product Range:-; SVHC:No SVHC (27-Jun-2018); Approval Bodies:CE, CSA; Approval Category:UL Recognised; Control Voltage DC Max:24VDC; Control Voltage DC Min:3VDC; Control Voltage Range:3V DC to 24V DC; Control Voltage Type:DC; Current Rating:4A; Dropout Voltage Vdo:1VDC; External Depth:10.16mm; External Length / Height:24.89mm; External Width:43.18mm; I2t:30ms; Input Voltage:3V DC to 24V DC; Isolation Voltage:4kV; Leakage Current:5mA; Load Current RMS Max:4A; Load Voltage Range:12V AC to 140V AC; Operating Voltage Range:12V AC to 140V AC; RMS Load Voltage Max:140V; RMS Load Voltage Min:12V; Resistance:1kohm; Single Cycle Surge Current:85A; Surge Current:85A; Voltage Drop @ Rated Current:1.6V
Useful information
Supplier parameters
Product code
MP120D4
Brand
OPTO 22
Supplier's product code
1426698
Product ID
U-3678643
