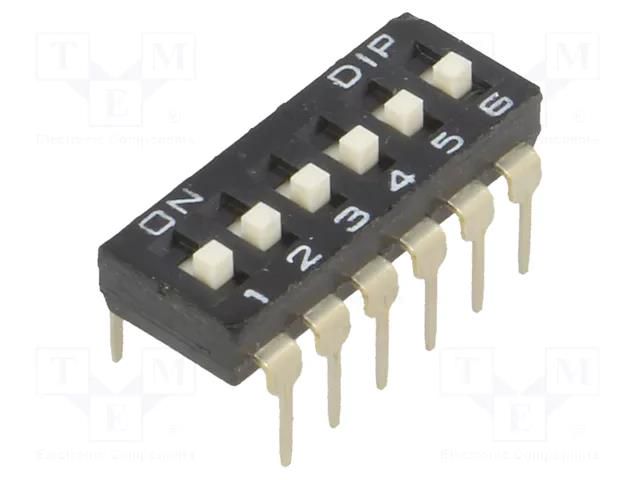

Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.1A/24VDC; Pos: 2 DIPTRONICS
Product Code: EAH106E
Brand
More similar products
Delivery terms
2024-08-27 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2042 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Supplier product description
Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.1A/24VDC; Pos: 2
Useful information
Supplier parameters
NomNr
EAH106E
Brand
DIPTRONICS
Supplier's product code
EAH106E
Product ID
U-175504
Body dimensions
16.18x6.2x3.6mm
Contact plating
gold-plated
DC contacts rating @R
0.1A / 24V DC
Flammability rating
UL94V-0
Manufacturer
DIPTRONICS
Max. contact resistance
:50mΩ
Mechanical durability
2000 cycles
Min. insulation resistance
1GΩ
Mounting
THT
Number of positions
2
Operating temperature
-25...70°C
Overall length
16.18mm
Poles number
6
Row pitch
7.62mm
Stable positions number
2
Switches features
raised actuator
Switching method
ON-OFF
Terminal pitch
2.54mm
Test voltage
0.5kV
Type of switch
DIP-SWITCH
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
