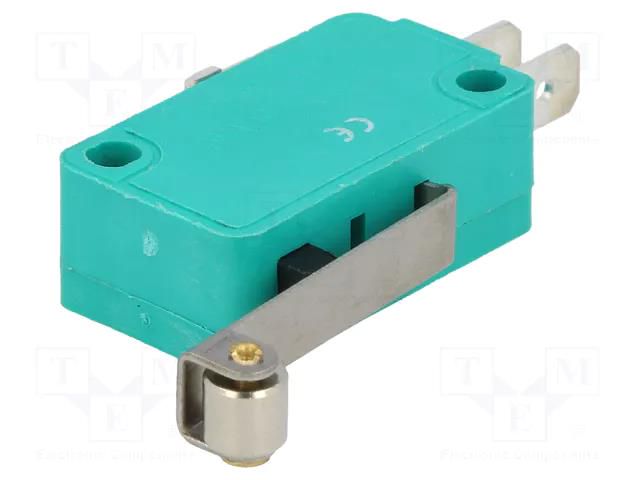

Microswitch SNAP ACTION; 10A/250VAC; with lever (with roller)
Product Code: WLK-4
More similar products
Delivery terms
2024-08-16 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 914 pcs | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Product description
Microswitch SNAP ACTION; 10A/250VAC; with lever (with roller)
Specifications
SKU
U-383978
Product code
WLK-4
Supplier product description
Microswitch SNAP ACTION; 10A/250VAC; with lever (with roller)
Supplier parameters
Supplier's product code
WLK-4
Product ID
U-383978
AC contacts rating @R
10A / 250V AC
Body dimensions
28x10.3x16mm
Contacts configuration
SPDT
Electrical life
100000 cycles
IP rating
IP40
Leads
connectors
Lever length
25mm
Max. contact resistance
:30mΩ
Min. insulation resistance
0.1GΩ
Number of positions
2
Operating Force
1.6N
Operating temperature
-25...80°C
Stable positions number
1
Switches features
with lever (with roller)
Switching method
ON-(ON)
Type of switch
microswitch SNAP ACTION
NomNr
WLK-4
