Product description

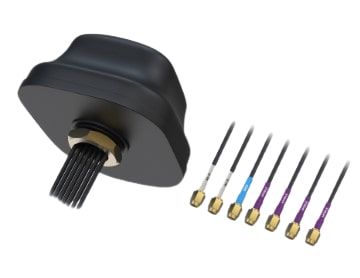

Teltonika antena PR1KC640 5G LTE (4xSMA)
Specifications
Supplier product description
- Product: Antenna Teltonika
- Model: PR1KC640
- Technologies: 5G LTE, GNSS
- Connectors: 4xSMA
- Type: Combo SISO
- Cable: RG174, 3m
- Amplifiers: 3.5dB (LTE), -2.5dB (Wi-Fi)
- Resistance: 50 Ohm
- Fastening: Screw
- Frequency range: 617-960 MHz, 1710-2690 MHz, 2900-4200 MHz
- Body diameter: 8mm
- Protection class: IP67
- General
- ProductAntenna Teltonika
- ModelPR1KC640
- Frequency range617 - 960/ 1710 - 2690/ 2900 - 4200 MHz
- PolarizationLinear
- Gain4.0 dBi
- V.S.W.R≤3.0
- Impedance50 Ω
- Connector type and count4x SMA Male
- Mounting methodScrew
- Radome ingress projection ratingIP67 (exclude cable outlet)
- Radome materialUV-Resistant ABS/PC
- Weight960 ± 30 g
- Housing dimensions189 x 182 x 85 mm
- Cable7 x LMR100, 3000 mm
- Recomended mounting dimensionsHole ø28 mm, panel thickness MAX 8 mm
- Operating temperature-40 °C - +85 °C
- RoHS CompliantYes
