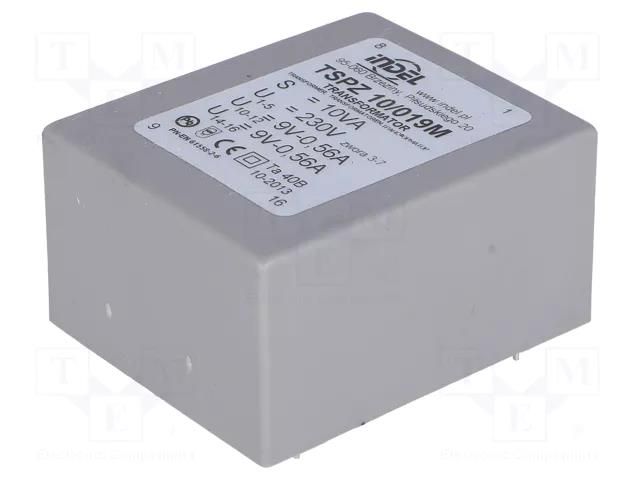

Transformer: encapsulated; 10VA; 230VAC; 9V; 9V; 550mA; 550mA; PCB INDEL
Product Code: TSPZ10/2X9V
Delivery terms
2024-08-09 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Supplier product description
Transformer: encapsulated; 10VA; 230VAC; 9V; 9V; 550mA; 550mA; PCB
Useful information
Supplier parameters
NomNr
TSPZ10/2X9V
A dimension
44mm
A1 dimension
37.5mm
B dimension
53mm
B1 dimension
47.5mm
C dimension
27.9mm
Conform to the norm
PN EN 61558
Electrical insulation strength
4kV/60s
Insulation class
II
IP rating
IP00
m dimension
35mm
Manufacturer
INDEL
Mounting
PCB
P dimension
5mm
Power
10VA
Primary voltage
230V AC
Secondary voltage 1
9V
Secondary voltage 2
9V
Secondary winding current 1
0.55A
Secondary winding current 2
0.55A
Thermal class
Ta40B
Type of transformer
encapsulated
Brand
INDEL
Supplier's product code
TSPZ10/2X9V
Product ID
U-362284
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
